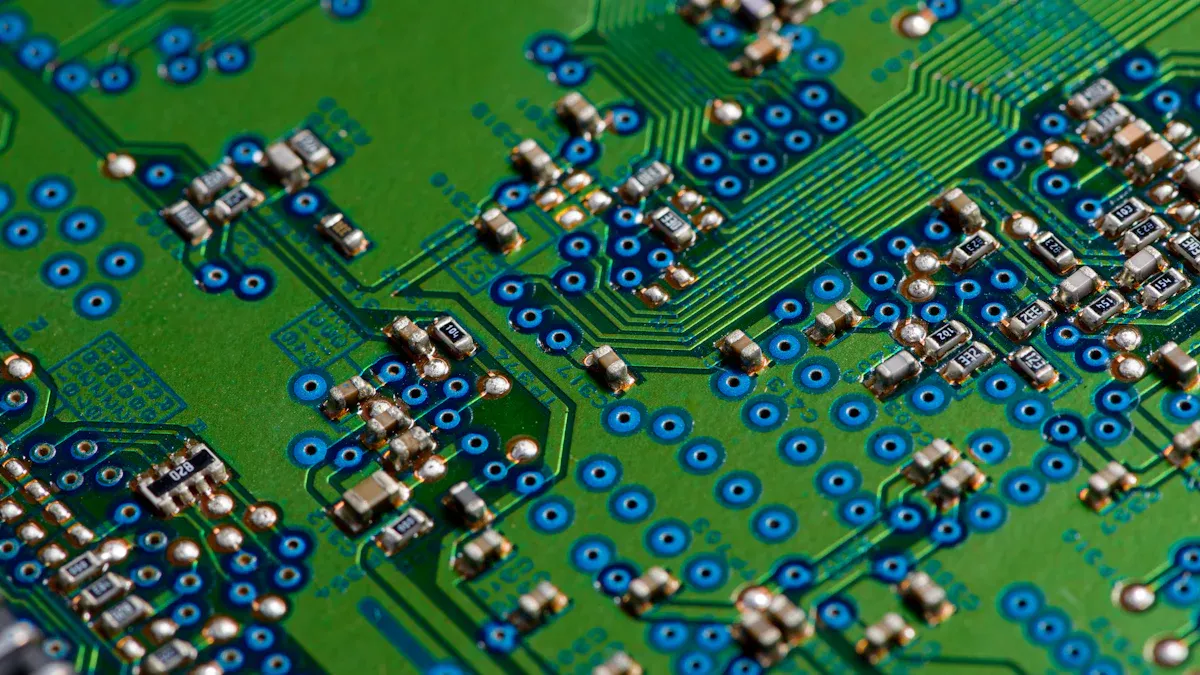

When to Use Aluminum Base PCBs Instead of FR4 in Your Electronics — Image Source: unsplash

Picking the right PCB is important for your project. Aluminum Base PCBs are good for high-power electronics. They are also good for electronics that get very hot. These are used in cars or big machines. Aluminum Base PCBs move heat away better than FR4. They are also stronger and last longer than FR4.

Property	FR-4	Aluminum
Thermal Conductivity	Low	High

LT CIRCUIT gives you both choices for your needs.

Key Takeaways

Aluminum Base PCBs deal with heat much better than FR4. This makes them great for high-power and hot places like LED lights and car electronics.
FR4 PCBs cost less and are more bendable. They work well for low-power or tricky multilayer circuits. But they do not handle heat well and can wear out faster in hot spots.
Pick Aluminum Base PCBs if your project needs to be strong, last long, and control heat well. Choose FR4 if you want cheaper, everyday electronics that do not get very hot.

Key Differences

Structure and Materials

You will notice that Aluminum Base PCBs and FR4 PCBs have very different structures. Aluminum Base PCBs use a three-layer design. This includes an aluminum core, a thin insulating layer, and a copper foil. This simple structure helps move heat away from your components. FR4 PCBs use glass fiber and epoxy resin. They can have one, two, or many layers. This makes FR4 a good choice for complex circuits that need more connections.

Feature	Aluminum Base PCB	FR4 PCB
Structure	Aluminum core, dielectric, copper foil	Glass fiber epoxy, single/multi-layer
Design Flexibility	Simple, best for single-layer	Flexible, supports multilayer

Thermal Performance

If your project gets hot, you need to think about thermal performance. Aluminum Base PCBs have high thermal conductivity. They move heat away fast, which keeps your parts cool. FR4 PCBs do not move heat as well. You may need extra cooling if you use FR4 in hot environments. Good design can help FR4 boards handle heat, but Aluminum Base PCBs work best for high-power uses like LED lighting.

Mechanical Strength

Aluminum Base PCBs are strong and tough. The metal core gives them support, so they do not bend easily. This makes them great for heavy parts or large boards. FR4 PCBs are lighter and more flexible. They work well for small devices but may not hold up under heavy loads.

Cost Factors

You should know that Aluminum Base PCBs cost more to make than FR4 PCBs. The metal core and special layers add to the price. FR4 PCBs are cheaper and easier to produce. If you need to save money, FR4 is a good choice. But if you want better heat control and strength, Aluminum Base PCBs can save you money in the long run by reducing the need for extra cooling.

LT CIRCUIT has deep experience making both Aluminum Base PCBs and FR4 PCBs. You can trust them to help you pick the right board for your project.

Aluminum Base PCBs: Advantages and Disadvantages

Advantages

When you pick Aluminum Base PCBs, you get many good things:

They move heat away fast, so your parts stay cool. The aluminum core can reach up to 230 W/m·K. This helps stop your device from getting too hot.
These boards are strong and do not break easily. They can handle shaking and bumps in cars or big machines.
They protect sensitive parts from getting too hot. In LED lights, they help stop color changes and make the lights last longer.
They block unwanted signals, so your device works better.
They work well in tough tests, like going from -40°C to 125°C over 1,000 times.
You can recycle these boards, and they are better for the planet than some other metals.

Tests show that using Aluminum Base PCBs in LED street lights can drop the LED temperature from over 120°C to 85°C. This can make the lights last three times longer.

Disadvantages

There are also some problems with Aluminum Base PCBs:

They cost more than FR4 boards because of the metal core.
They are heavier, which is not good if you need light parts.
You cannot make as many different designs. Most only have one or two layers.
It is harder to find special or custom types.

You need to think about these good and bad points before you choose Aluminum Base PCBs for your project.

FR4: Pros and Cons

Pros

FR4 is a very common PCB material. Many engineers use it for lots of electronics. There are many reasons to pick FR4:

🏆 Proven Track Record: FR4 has been used for many years. It works well in commercial, industrial, and military electronics. You can trust it to do its job.
💰 Cost-Effective: FR4 is cheap because it is made in large amounts. It is a good choice if you want to save money.
🌍 Wide Availability: You can find FR4 from many suppliers. It is easy to get almost anywhere.
🛠️ Versatile Grades: There are different types of FR4 for different needs. High Tg FR4 is better for hot places. High-frequency FR4 is good for RF and telecom.
🔧 Easy to Work With: FR4 is simple to cut and shape. This helps you make new boards or test ideas fast.
🚗 Strong and Reliable: FR4 boards are tough and can handle stress. They are used in cars, robots, and machines.

FR4 Grade	Key Properties	Application Suitability
Standard FR4	Balanced mechanical, electrical, thermal; Tg ~130-140°C	General-purpose, moderate thermal demands
High Tg FR4	Elevated Tg (170-180°C), better thermal stability	Power electronics, automotive, high-reliability
High-Frequency FR4	Lower dielectric constant and dissipation factor	RF, microwave, telecommunications, aerospace
High CTI FR4	Superior thermal conductivity, CTI > 600 Volts	Efficient heat dissipation applications
FR4 without Copper	Mechanical strength, insulating boards	Insulation and board supports
FR4 G10	High mechanical strength, thermal shock resistance	Solid core applications requiring durability

Tip: FR4 is a good choice for most electronics. It gives you a mix of low cost, strength, and flexibility.

Cons

FR4 also has some problems. Some projects need more than what FR4 can give:

🔥 Thermal Limits: FR4 does not work well with very high heat. If your board gets hotter than 130°C, it can bend or wear out faster.
📶 High-Frequency Challenges: FR4 is not great for very fast or microwave signals. You might lose signals or get interference.
💧 Moisture Sensitivity: FR4 can soak up water. In wet places, you need to protect your board.
🧪 Aging and Degradation: High heat or lots of soldering can change FR4. This can make your board not last as long.
♻️ Environmental Concerns: Regular FR4 has chemicals that are not good for the planet. Some people use halogen-free FR4 to be safer for the environment.

Think about these good and bad points before you choose FR4. If you need help, LT CIRCUIT can help you pick the best board for your project.

When to Use Aluminum Base PCBs

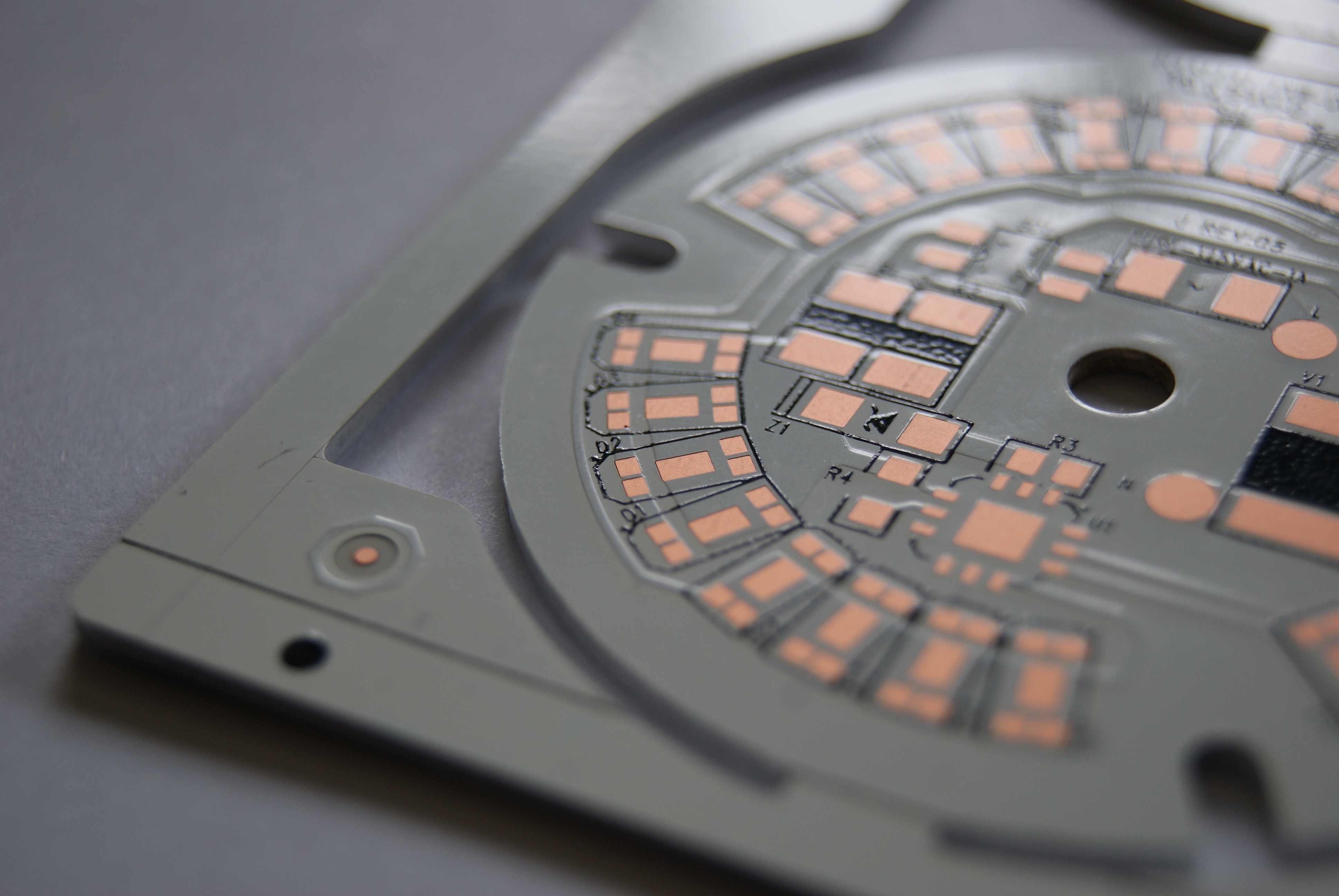

High-Power LED Lighting

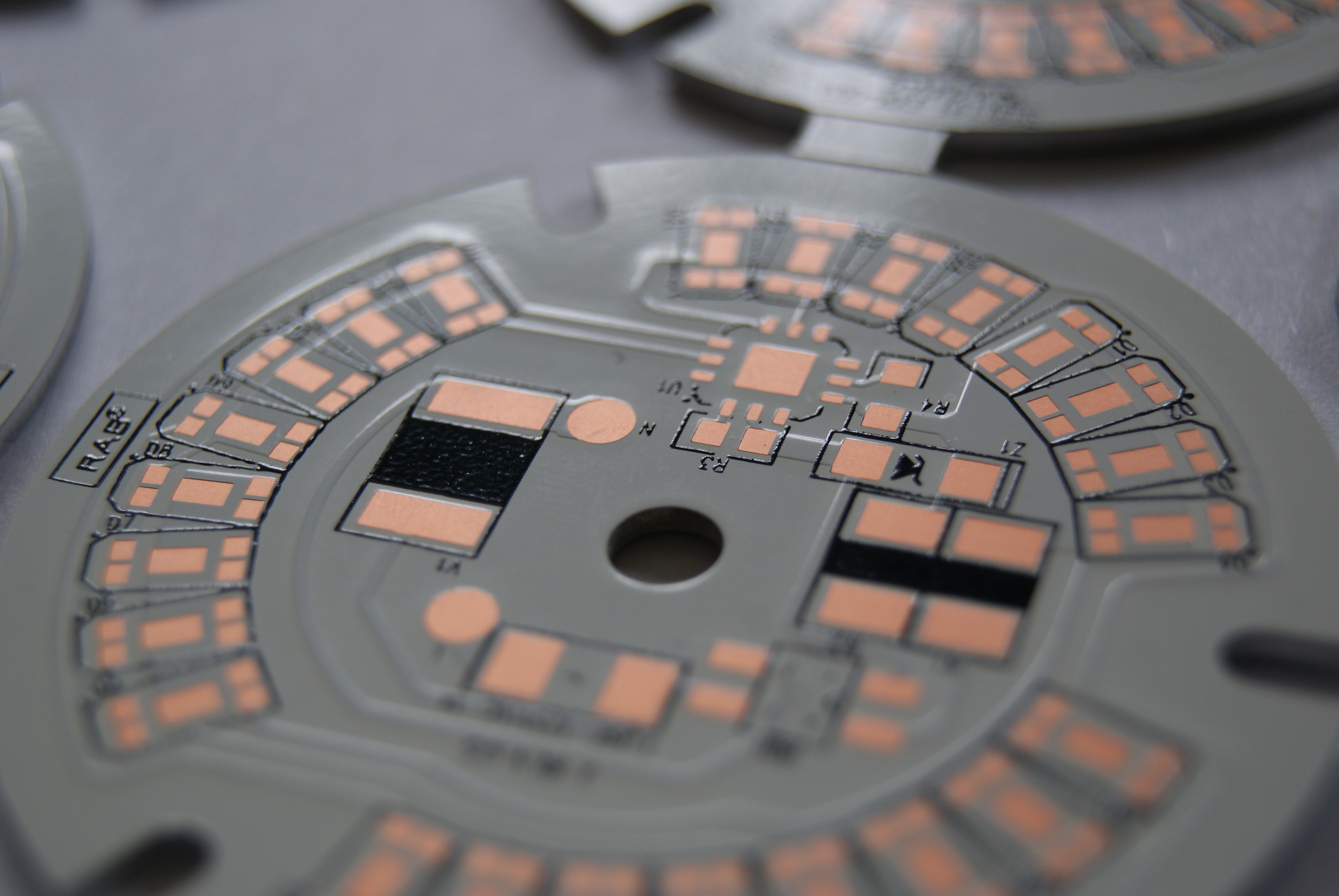

Aluminum Base PCBs are great for high-power LED lights. These boards help LEDs stay cool and work longer. The aluminum core moves heat away fast. This keeps the LEDs from getting too hot or breaking. You can find these boards in street lights, car headlights, and LED panels. Here are some reasons why they are a good choice:

They move heat well, so LEDs do not overheat.
Good heat control helps LEDs last longer.
The aluminum base makes the board strong and tough.
You save money because you do not need to replace LEDs often.
The layers help heat and electricity move the right way.
Many high-power LED products use Aluminum Base PCBs for heat control.

If you want your LED lights to be bright and last, use Aluminum Base PCBs. LT CIRCUIT can help you pick the best boards for your lights.

Power Electronics

Power electronics make a lot of heat. Things like DC-DC converters, inverters, and motor drives need strong boards. Aluminum Base PCBs help control this heat. They keep your circuits safe and working well. You do not need extra heat sinks, so you save space and money.

These boards move heat away fast, so parts stay cool.
You can use them in power supplies, battery chargers, and motor controllers.
The aluminum base keeps the board steady when it gets hot or cold.
Your power devices work better and last longer.

LT CIRCUIT has Aluminum Base PCBs for modern power electronics. You can trust their boards to keep your devices cool and safe.

Automotive and Industrial

Aluminum Base PCBs are good for cars and factories. These places are rough on electronics. The boards need to handle heat, shaking, and pressure. Aluminum Base PCBs give you the strength and stability you need.

Performance Metric / Feature	Aluminum Base PCB Data / Description	Relevance to Automotive & Industrial Applications
Thermal Conductivity	~200 W/m·K	Moves heat away fast in cars and lasers
Junction Temperature Reduction	20-30°C lower than FR4	Makes electronics last longer
Thermal Resistance	0.05 - 0.2 K/W	Good heat transfer in power modules
Dimensional Stability	Size changes only a little from 30°C to 140°C	Keeps shape when it gets hot or cold
Power Handling Capacity	Supports over 10W per LED	Good for bright headlights and big machines
Mechanical Durability & Weight	Light, strong, resists shaking and bumps	Works well in tough car and factory jobs
Electromagnetic Shielding	EMI shielding	Keeps electronics working without signal problems
Application Examples	Engine control, battery monitoring, RADAR/LIDAR	Used in cars and factories

You will see Aluminum Base PCBs in engine controls, battery monitors, and laser systems. They help devices work safely, even when things get rough. LT CIRCUIT can give you boards that meet high standards for these jobs.

Other Applications

Aluminum Base PCBs are used in many other things. You see them in LED bulbs, screens, and even in airplanes. They help keep devices cool and running well. In power electronics, they control heat in converters and drives. Their strength makes them good for hard jobs in factories or planes.

You can use machines to put together lots of boards fast. This gives you good quality and saves money on work. If you need special boards, you can put them together by hand. Here are some benefits:

Machines make many boards the same and save money.
Hand assembly lets you make special boards for unique needs.

Aluminum Base PCBs help you save money because you do not need extra cooling parts. They also last longer, so you do not need to fix them as much. LT CIRCUIT can help with big or small projects, so you can pick what works best for you.

Decision Checklist

Project Requirements

When you pick a PCB, you need to think about what your project needs. First, look at what matters most for how your board will work and how much it will cost. Use this table to see the main things to compare:

Metric / Factor	Aluminum Base (Metal Core) PCB	FR4 PCB
Thermal Conductivity	High – moves heat away quickly	Low – heat stays in the board
Power Application	Good for high-power, high-heat uses	Best for low-power, budget projects
Durability	Strong – handles heat and vibration	Less durable – can warp or crack
Cost	Higher – metal core adds expense	Lower – more affordable
Availability	Less common	Easy to find
Manufacturing Ease	More complex process	Simple and fast to make
Dielectric Strength	Moderate	High – good for high-voltage circuits
Operating Temperature	Wide range – works in hot places	Limited – not for extreme heat

Tip: Think about how much heat your project makes. Also, think about how much power it uses. Ask yourself if the board needs to be strong. If your project gets very hot or must last a long time, a metal core might be better.

Application Needs

You should also check what your project needs to do. Every project is different and has its own needs. Here are some important questions to help you decide:

Does your device get hot or need to cool down fast?
Will your board have to handle lots of shaking or bending?
Do you need to keep the price low for a simple device?
Is your project for fast signals or high voltage?
Will your board be used where it is wet or dirty?
How many layers does your circuit need?

You can use this table to see how each material works:

Performance Indicator	FR4 Characteristics	Metal Core PCB Characteristics
Dielectric Constant (Dk)	Moderate, good for most uses	Lower in special types, better for fast signals
Coefficient of Thermal Expansion	Moderate, can stress under heat	Better match, less stress
Thermal Conductivity	Low, not good for heat	High, great for heat
Glass Transition Temperature (Tg)	Moderate, limits high-temp use	Often higher, handles more heat
Moisture Absorption	Higher, can soak up water	Lower, stays stable
Mechanical Strength	Good for most uses	Strong, resists bending and heat
Electrical Insulation	Excellent	Needs special layers
Cost	Cheaper	More expensive
Typical Applications	Consumer gadgets, general electronics	LEDs, cars, power supplies, heat-sensitive devices

Note: If you need a board for high-power LEDs, car parts, or power supplies, a metal core PCB is usually best. For most normal electronics, FR4 is a good and cheap choice.

Picking the best PCB material is important for your project. Look at this table to see the main differences:

Aspect	Summary
Heat Handling	Aluminum core takes heat away quickly. FR4 is good for cool devices.
Mechanical Strength	Metal core is hard to bend. FR4 is not heavy.
Cost	FR4 is cheaper. Metal core costs more but can last longer.

Choose the material that fits what you need. If you want help, ask LT CIRCUIT.

FAQ

What is the main reason to pick Aluminum Base PCBs?

You should pick Aluminum Base PCBs when your project needs to handle a lot of heat or power. They keep your parts cool and safe.

Can you use FR4 for high-power LED lights?

You should not use FR4 for high-power LEDs. FR4 does not move heat away fast enough. Your LEDs may get too hot and fail early.

How do you know which PCB type is best for your project?

Ask yourself about heat, power, and strength needs. If your device gets hot or needs to last, choose Aluminum Base. For simple projects, use FR4.
