Why Aluminum PCBs Are Ideal for Automotive Electronics

Tony Zh Yi

·July 4, 2025

·7 min read

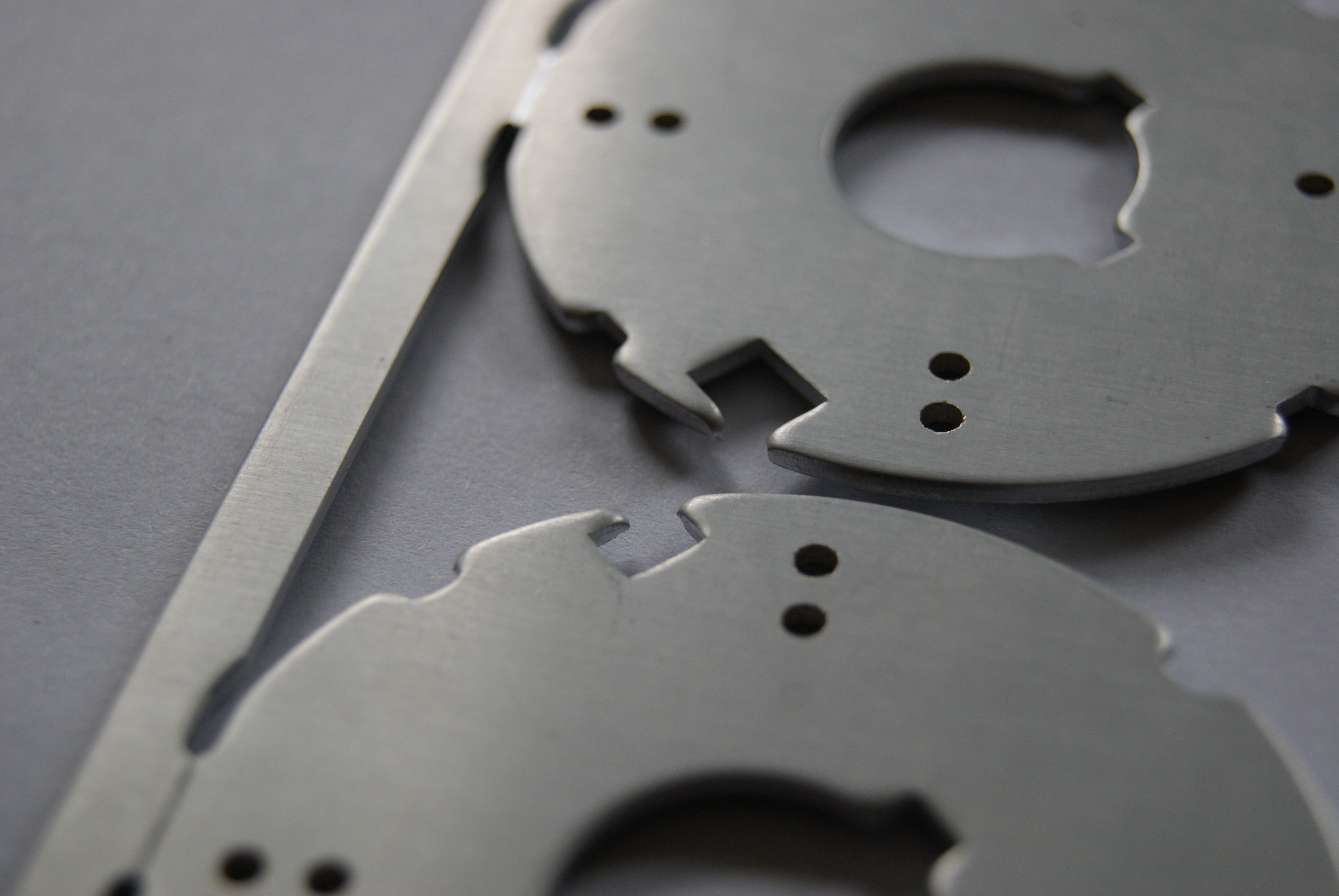

Why Aluminum PCBs Are Ideal for Automotive Electronics — Image Source: pexels

Aluminum PCBs are the best pick for car electronics. They are light, manage heat well, and last a long time.

Performance Metric	Aluminum PCB Value	FR-4 PCB Value
Thermal Resistance (°C/W)	1 - 2	20 - 22
Thermal Expansion Coefficient (ppm/°C)	22	110
Dimensional Change (30-140°C)	2.5% - 3.0%	N/A

These numbers show aluminum PCBs deal with heat and size changes better. This helps fix problems in the car industry.

Key benefits include:
Great heat control for strong car systems
Light weight helps make cars lighter
Strong build keeps them working in tough places

Key Takeaways

Aluminum PCBs handle heat better than regular boards. They help car electronics stay cool and work well in very hot or cold weather. These PCBs are light but also strong. They help make cars lighter and save fuel. They do this without losing strength. Aluminum PCBs last a long time. They do not get damaged easily by shaking, water, or heat. This makes them great for hard car conditions.

What Are Aluminum PCBs?

Structure Overview

Aluminum PCB substrates have a layered design. This helps them work well in car electronics. Each board has three main layers.

Base Layer: This layer is made of aluminum. It gives the board strength. It also works as a heat sink.
Dielectric Layer: This thin layer sits between the base and the copper circuit. It keeps electricity from leaking. It also helps move heat away.
Copper Circuit Layer: This top layer makes the paths for electricity. It links parts together and lets current flow.

Aluminum PCB substrates are special because they put these layers together in one small board. This design shows how heat moves fast from the copper layer. It goes through the dielectric and into the aluminum base.

Key Features

Aluminum PCB substrates have many features that help with heat loss. Their low thermal resistance of aluminum pcb lets heat move out quickly. This is very important in car systems. The table below shows some main facts:

Metric	Specification	Industry Standard
Maximum Power Density	Up to 1500 W/cm²	N/A
Thermal Resistance	4.09 × 10⁻⁴ °C/W (32% lower than FR-4)	IPC-6012
Minimum Trace Width	0.1 mm	IPC-2221
PCB Thickness	1.6 mm	IPC-6012

Companies like RAYMING use strong quality checks. They have ISO 9001 certification and test every board. They also use machines to check boards and test them with heat and cold. These steps make sure aluminum PCB substrates are safe and work well. When people ask, "how do aluminum pcbs work" in real life, these tests show they can handle hard jobs in cars.

Note: Aluminum PCB substrates follow RoHS and REACH rules. This makes them safe for people and the earth.

Benefits for Automotive

Thermal Management

Aluminum pcb substrates help car electronics stay cool. Their layers let heat move fast from the copper to the aluminum base. This keeps parts from getting too hot. The low thermal resistance means heat leaves the board quickly, even when working hard.

Parameter/Feature	Aluminum PCB Details	Benefit for Automotive Applications
Thermal Conductivity	Aluminum substrates: 1.0–9.0 W/m·K	Efficient heat dissipation critical for automotive electronics under fluctuating temperatures
Copper Layer Thickness	Typically 35–70 µm	Enhances lateral heat spreading, supporting stable operation under high current loads
Dielectric Layer	Thermal resistance 0.3–0.8 W/m·K; dielectric strength 20–40 kV/mm	Balances electrical insulation with heat conduction, ensuring reliability
Aluminum Alloys	5052 (corrosion resistance), 6061 (tensile strength), 1060 (high thermal conductivity)	Alloy selection customizes thermal and mechanical performance for automotive needs

Engineers pick aluminum pcb substrates for the best heat control. These boards work in very cold and very hot places, from -40°C to 150°C or more. This helps cars start in winter and run in hot engine areas. In real life, like in EV batteries and power modules, good heat control keeps electronics working well.

Lightweight Design

Making cars lighter is very important. Aluminum pcb substrates help by weighing less than other boards. They are still strong and support heavy parts. Lighter boards help cars use less fuel and make electric car batteries last longer.

Aluminum pcb substrates use alloys like 5052 and 6061 for strength and low weight.
Their small size lets engineers add more features in less space.
Less weight puts less stress on mounts and connectors, so things break less often.

Car lights, like daytime running lights and fog lamps, use these light boards. They hold strong LEDs but keep the whole light easy to put in.

Durability and Reliability

Aluminum pcb substrates are tough and last a long time in cars. They can handle shaking, big temperature changes, and do not rust easily. This is because they are made with strong materials and built to last.

High-temperature substrates stay stable above 170°C.
Special traces and fewer vias keep signals clear.
Tests for heat and shaking show these boards work on real roads.
Makers follow strict rules like IPC-6012 Class 3 and AEC-Q200 for quality.
Extra coatings protect against water, dust, and interference.

Benefit Category	Aluminum PCBs Characteristics	Comparison to Alternatives (e.g., FR4)
Mechanical Strength	Thicker, more rigid boards with better mechanical durability	FR4 is less mechanically robust under thermal cycling and mechanical stress
Heat Management	Efficient heat transfer through copper and dielectric layers to aluminum base, reducing overheating risk	FR4 requires additional cooling solutions due to poor heat dissipation
Electrical Insulation	Stable insulation with optimized dielectric layers maintaining heat conduction	FR4 insulation less optimized for thermal management
Application Impact	Improved reliability, longer lifespan, operational stability in automotive lighting and power electronics	FR4 prone to overheating and reduced lifespan in high-power automotive applications

Aluminum pcb substrates keep working well over time. They send signals clearly, even with shaking and heat changes. Car electronics like ADAS and EV power modules need this to work safely for years. Good connections and traces help systems stay safe and reliable.

Note: Aluminum pcb substrates have shown they work well in tough car jobs. Their mix of heat control, strength, and signal safety makes them a top pick for engineers who want strong, safe electronics.

Aluminum PCB Substrates vs. Traditional Materials

Performance Comparison

Aluminum pcb substrates work better than old board types in cars. They move heat away much faster than FR4 boards. Their thermal conductivity is about 237 W/m·K, which is much higher than FR4. This means heat leaves the board fast, so parts stay cool and safe. Aluminum pcb substrates also keep their shape well. When the temperature goes from 130°C to 140°C, they only change size by about 2.5% to 3.0%. This helps stop bending and keeps connections tight.

Key things to look at are:

Thermal conductivity and how well they get rid of heat
Weight and how strong they are
Flatness for putting parts on top
Glass transition temperature (Tg) and how much heat they can take
Thermal expansion coefficient
Electrical insulation and how much voltage they can handle

Aluminum pcb substrates are good at handling shaking and last a long time. Their hard build helps car parts that shake a lot and get hot. But they are not as bendy as FR4, so they may not work for very complex boards.

Cost and Longevity

Aluminum pcb substrates can cost more to make than FR4 boards. But they help save money later. Their good heat control lowers the chance of overheating and breaking. Devices last longer and do not need fixing as much. The strong aluminum core also blocks electromagnetic interference, which keeps circuits safe.

In real tests, car modules with aluminum pcb substrates lasted longer and broke less in tough places.

Even though they cost more at first, they are worth it for cars that need to work well. They are used in LED lights, power modules, and engine controls because they work so well.

Car electronics need to be strong and work well. Alumina PCBs help because they move heat away fast. They do not soak up water at all. They are also very tough and hard to break.

Property	96% Alumina	99% Alumina	99.6% Alumina
Thermal Conductivity	~25 W/m·K	~31 W/m·K	~35 W/m·K
Maximum Operating Temp	1400°C	1600°C	1600°C

These things make them a good pick for new cars.

FAQ

What makes aluminum PCBs better for automotive electronics than FR4 boards?

Aluminum PCBs get rid of heat much faster. They can handle shaking and last longer in tough car places. FR4 boards can get too hot and stop working sooner.

Can aluminum PCBs handle high-power automotive applications?

Yes. Aluminum PCBs can carry lots of current and power. Their good heat control keeps parts safe in hard jobs like EV batteries and LED headlights.

Are aluminum PCBs resistant to corrosion and moisture?

Aluminum PCBs have special coatings for protection. These coatings keep out water, dust, and rust. Car electronics stay safe even when it is wet or salty outside.
