Flexible Multilayer PCBs: Applications, Manufacturing Challenges, and LT CIRCUT's Solutions
Flexible multilayer PCBs have many layers that carry electricity. They use flexible materials, so they can bend. This helps make small and advanced electronics. The world market for printed circuit boards is getting bigger fast. Many industries want smaller and better products. LT CIRCUIT is known for giving strong and trusted technology. They also offer transparent flex PCB choices. This helps them keep up with what industries need.
Key Takeaways
Flexible multilayer PCBs can bend and fit in small spaces. They are great for tiny and smart electronics like smartphones, medical devices, and cars.
Making these PCBs is hard because of picking materials, lining up layers, handling heat, and cost. Careful planning and checking for quality help fix these problems.
LT CIRCUIT uses new technology and strong quality checks. This helps them make tough and dependable flexible PCBs for many different industries.
Flexible Multilayer PCBs
Key Features
Flexible multilayer PCBs are special because of their smart design and materials. These boards have many layers that help make small and tricky circuits. They fit into tight spaces. Makers pick things like polyimide or polyester because they can handle heat and bend well. The layers that carry electricity are usually copper foils. These foils can be thin or thick, from 12 µm to 70 µm. Glue like acrylic, epoxy, or polyimide holds the layers together. This glue works even when it gets very hot.
Parameter | Typical Value / Specification |
|---|---|
Substrate Materials | Polyimide, Polyester |
Conductive Layers | Copper foils (12 µm to 70 µm), silver inks, conductive polymers |
Adhesive Types | Acrylic (up to 125°C), Epoxy (up to 150°C), Polyimide (up to 250°C) |
Cover Layers | Polyimide films, LPI solder masks |
Reinforcement Boards | FR-4, Stainless Steel |
Flexibility (Bend Radius) | As low as 1 mm |
High Component Density | Yes |

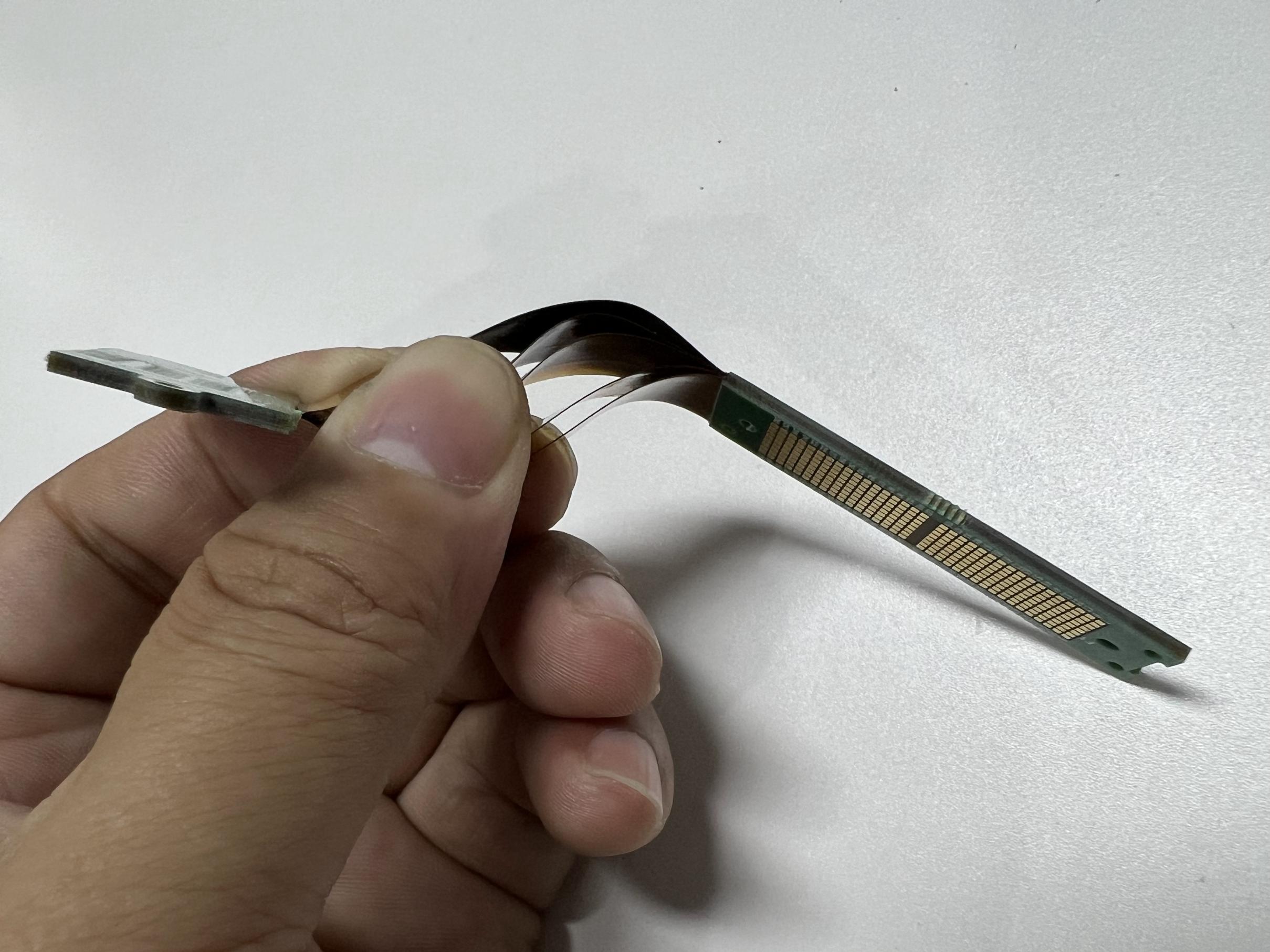

Multilayer rigid-flex PCBs have both hard and bendy parts. This mix gives them strength and lets them bend. They can hold lots of parts close together. They also work well in tough places.
Why Flexibility Matters
Being able to bend is a big plus for these boards. They can twist, fold, or bend to fit in small or odd spots. Things like medical wearables, car sensors, and factory controls use this kind of board. Flexible multilayer PCBs keep working well even after being bent many times. This shows they last long and work well.
Multilayer rigid-flex PCBs do not need as many connectors or cables. This means there are fewer ways for things to break. They can bend over and over, so they are good for things that move or face rough use.
Makers use careful steps to line up the layers and make the bendy parts stronger. This makes sure each board is both strong and flexible. These boards are a good choice for new electronics that need to save space, hold many parts, and last a long time.
Applications
Consumer Electronics
Flexible multilayer PCBs are very important in electronics people use every day. Things like smartphones, tablets, laptops, smartwatches, and wearables need these special circuits. Foldable smartphones use flexible PCBs to stay thin and have curved screens. These products have many small parts close together, so the signals must stay strong and clear. In 2023, more than half of all flexible PCBs were used in consumer electronics. Most of these were made in Asia Pacific. LT CIRCUIT gives flexible multilayer PCBs to big brands. This helps them make new designs and smaller devices.
Consumer Electronic Products | Market Share (2023) | Growth Projection (2024-2032) | Key Drivers |
|---|---|---|---|
Smartphones, Tablets, Laptops, Smartwatches, Wearables | Highest CAGR for multilayer FPCBs | Miniaturization, performance |
Medical Devices
Medical devices need circuits that are small, light, and work well. Flexible multilayer PCBs help make things like implantable medical devices and health care tools. These circuits can bend and fit the shape of the body. They can also handle being bent many times. It is very important for these circuits to keep signals clear and block outside noise. LT CIRCUIT makes safe and strong PCBs for medical imaging, patient monitoring, and wearable health devices.
Note: Flexible multilayer PCBs help medical electronics last longer and work quietly in places where noise can be a problem.
Automotive and Aerospace
Cars and airplanes need circuits that can handle shaking, bumps, and big changes in temperature. Flexible multilayer PCBs help make electric cars, ADAS, and entertainment systems lighter and simpler. Satellites and other space electronics use these PCBs because they save space and are very reliable. Rigid-flex designs mix hard and bendy parts, so they are strong and can bend. This makes them great for important car and airplane systems. LT CIRCUIT works with makers to give strong PCBs for tough jobs.
Automotive and aerospace companies like:
Circuits that help send data fast and do important jobs
Industrial Uses
Robots, factory machines, and telecom equipment use flexible multilayer PCBs. These PCBs let designers make small, powerful systems that do not get too hot. They also fit many parts in a small space. LT CIRCUIT makes special PCBs for factories, so they are easy to put together and last a long time.
Industrial Application | Advantages of Flexible Multilayer PCBs | Performance Metrics / Benefits |
|---|---|---|
Consumer Electronics | High packaging density, miniaturization, compact device integration | Increased board density, miniaturization, noise reduction |
Medical Devices | Compact, lightweight, low-noise electronics, biocompatibility | Signal integrity, EMI/RFI shielding, reliability under stress |
Automotive Electronics | Electronic control modules, sensors, infotainment systems | Reliability under vibration/bending, thermal management |
Aerospace and Defense | Avionics, radar arrays, guided missiles requiring high reliability | Durability, EMI shielding, high-speed performance |
LT CIRCUIT’s skills help many industries use flexible multilayer PCBs that are advanced, strong, and work well.
Manufacturing Challenges
Making flexible multilayer PCBs is not easy. It needs special skills and careful planning. These boards have many layers and use flexible materials. They are important for new electronics. But making them is hard because the design is tricky.
Material Selection
Picking the right materials is the first step. Makers choose things like polyimide or polyester. These can bend without breaking. The glue must keep the layers together when the board bends a lot. Copper foils must be thin to bend but thick enough to carry power.
It is hard to keep the same quality in both hard and bendy parts. If the glue or material is wrong, the board can come apart when bent. Makers stop this by following rules, like using the right bend size and not putting holes in bendy spots. Working with builders early helps pick the best materials and make building easier.
Material prices can change because copper and laminate costs go up and down. Rules about the environment and problems getting supplies can make it harder to find what is needed. These things make making boards cost more and need more research.
Layer Alignment
Getting the layers to line up is very important. If they do not, signals can get lost or short out. The board can even break. Makers use smart tools to make sure each layer matches up.
Alignment Technique | Description | Accuracy / Statistical Measurement |
|---|---|---|
Automated Optical Inspection (AOI) | High-resolution cameras detect misalignment | 0.0005 inches accuracy; 25% fewer defects (2023 SMTA study) |
Design for Manufacturability (DFM) | Identifies risks before production | Prevents alignment issues before manufacturing |
Quality Control (QC) Methods | AOI, X-ray, electrical testing | 30% defect rate reduction (2024 iNEMI report) |
Cameras and X-rays help find problems early. Checks before making the board, like using special marks, stop mistakes. Quality checks lower the number of bad boards and help make more good ones.
Thermal Management
Heat is a big problem for these boards. Too much heat can break parts and make them not last long. If the board gets 10°C hotter, parts can last half as long. Makers use different ways to keep boards cool.
High-Tg materials stop the board from coming apart or breaking.
Thicker copper helps spread heat better.
Special holes under hot parts can cool them by 10-15°C.
Putting hot parts in smart spots and using fans or sinks helps cool things down.
Looking at the board and using heat cameras finds hot spots early.
Using materials that move heat well, stacking layers right, and using good cooling tricks all help. These steps keep boards safe and working, even when things get tough.
Cost Efficiency
Saving money is important when making these boards. They cost more than normal boards because they use special stuff and are harder to make. For example, some prepregs for bendy parts can cost $3.00 per square foot. Normal ones for hard boards cost only $0.25.
Rigid-flex boards can take the place of many boards and wires, saving money.
Fewer wires and connectors mean less work and lower costs.
Better boards need less fixing and last longer.
In space, using these boards makes satellites lighter and cheaper to launch.
Even though they cost more at first, they can save money over time. Makers must think about the first price and the long-term savings when picking these boards.
Making flexible multilayer PCBs is hard and needs smart tools, skilled workers, and teamwork. By solving problems with materials, lining up layers, heat, and cost, makers can build strong boards for new electronics.
LT CIRCUIT Solutions
Advanced Multilayer Technology
LT CIRCUIT uses smart multilayer technology to fix hard design and building problems. Their engineers pick strong materials like polyimide and adhesive-less laminates. These materials let the boards bend but not break. The boards also keep their shape for a long time. The team uses computer tools early in the design. These tools help spot heat problems before making the boards. This stops damage from happening.
Evidence Category | Description |
|---|---|
Use of thermal vias and heat sinks to reduce heat stress and improve durability. | |
Simulation Tools | Early design phase simulations predict and mitigate heat effects to prevent damage. |
Layer Alignment | Automated machines and DFM rules ensure precise layer stacking. |
Testing Protocols | Stress screening, burn-in testing, heat cycling, bending checks, AOI, and X-ray inspections. |
Material Selection | Use of adhesive-less materials and polyimide coverlays enhances flexibility and strength. |
Industry Certifications | Compliance with IPC-6012 and AS9100 standards guarantees quality and reliability. |
LT CIRCUIT engineers use special machines and marks to line up each layer. This stops mistakes when stacking layers. It keeps the board strong. They add thermal vias and metal core layers to move heat away from important parts. These steps make every board more reliable.
Precision Manufacturing
LT CIRCUIT uses careful methods to build flexible multilayer PCBs. First, workers get the materials ready and cut them to the right size. Photolithography makes tiny circuit patterns with great accuracy. Laser drilling makes small holes called microvias and through-holes. These holes are as small as 50μm. They connect the layers and keep the board small.
Manufacturing Technique | Edge Defect Improvement | Burr Height (at 35 μm depth) | Burr Height (≥ 70 μm depth) | Cutting Force (N) | Chip Morphology |
|---|---|---|---|---|---|
UPOP | Baseline | Higher burr height | Lower burr height than UEVC | 4.81 | Serrated |
UEVC | 39 μm smaller than UPOP | ~5 μm lower than UPOP | ~15 μm higher than UPOP | N/A | N/A |
UPFC | Best surface quality | ~4 μm | Virtually no burrs | 0.021 | Slender, elongated |
UPFC technology gives the smoothest edges and almost no burrs. This helps the circuits work better. Using lasers and laminators with high accuracy means less fixing is needed. More boards turn out right the first time. Workers get training often to keep their skills up to date. They also follow the newest quality rules.
Quality Assurance
Quality checks are very important at LT CIRCUIT. The company uses AOI and X-ray tools to look for problems. These tools find issues with soldering and inside the boards before shipping. Flexibility tests bend each board many times. This shows the boards will last when used.
LT CIRCUIT follows strict rules like IPC-6012 and AS9100. These show that every board is high quality and reliable.
Stress tests, burn-in, and heat cycling help find weak spots early. The team uses DFM rules to stop mistakes before making the boards. These steps make sure every board works well for customers.
Customer Support
LT CIRCUIT gives strong help to customers during the whole project. Their team helps pick the best materials and designs for each job. They answer questions fast and give updates at every step. Customers can ask for special solutions if they need something different.
Quick answers for quotes and technical help
Design help to make multilayer layouts better
Clear updates during making and delivery
Help after sales for fixing and upgrades
LT CIRCUIT’s support team works closely with customers to give the best results. This teamwork helps customers do well in fast-changing markets.
Transparent Flex PCB
Features
Transparent flex pcb technology helps designers make new electronics. These boards use polyimide or polyester film. They can bend and stay see-through. This is good for products that need to be flexible and clear. Designers put transparent flex pcb in smartwatches, AR/VR devices, and medical sensors. The boards are light and strong. They do not break when bent many times.
Transparent flex pcb works with single, double, or multilayer designs.
The boards use less wiring, so they do not break from shaking.
They can be made into cool shapes and fit in moving or curved devices.
Making them uses careful circuit design and clear film layers.
Special coatings help the transparent flex pcb block water and heat.
A transparent flex pcb can be up to 86% clear at 550 nm. It keeps low sheet resistance after 1,000 bends. This means the board stays strong and works well in hard places.
Property | Polyimide | Polyester (PET) | LCP | PTFE |
|---|---|---|---|---|
Thermal Resistance | Up to 260 °C | Up to 120 °C | Up to 200 °C | Up to 250 °C |
Dielectric Constant | 3.4 @1 MHz | 3.2 @1 MHz | 2.9 @1 GHz | 2.1 @10 GHz |
Flexural Strength | 120 MPa | 80 MPa | 100 MPa | 90 MPa |
Moisture Absorption | 0.5 % | 0.3 % | 0.02 % | 0.01 % |
LT CIRCUIT Capabilities
LT CIRCUIT is a leader in making transparent flex pcb. The team picks special materials for clear and good boards. Engineers use a-IZO films on PES to get high clarity and steady power flow. The company’s steps include careful film layers, tiny patterns, and strong checks.
LT CIRCUIT makes custom transparent flex pcb for electronics, car dashboards, and health devices. Their transparent flex pcb can bend many times and work in tough places. Customers trust LT CIRCUIT for strong, high-quality transparent flex pcb that fit new device needs.
Flexible multilayer PCBs can bend easily and are light. They also help save space in devices. LT CIRCUIT makes boards that weigh 40% less than regular ones. Their boards are also 25% more reliable than older types. LT CIRCUIT has a 99.95% first-pass yield rate. This means almost every board works right the first time. People trust LT CIRCUIT for new and advanced electronics.
FAQ
What industries use flexible multilayer PCBs the most?
Flexible multilayer PCBs are used in many fields. Companies that make electronics for people use them a lot. Car makers and airplane companies also need these boards. Medical device makers use them too. These boards help make small, strong, and fast products.
How does LT CIRCUIT ensure PCB quality?
LT CIRCUIT checks every board with machines and careful tests. They use special materials that are approved.
Customers get boards that work well and follow the rules for safety and performance.
Can flexible multilayer PCBs handle repeated bending?
Yes, these boards can bend many times and still work.
Engineers make them strong for things you wear, cars, and factory machines.
