Why Gantry Electroplating Lines Are Essential for Copper-Plating Half-Hole PCBs

Tony Zh Yi

·April 28, 2025

·7 min read

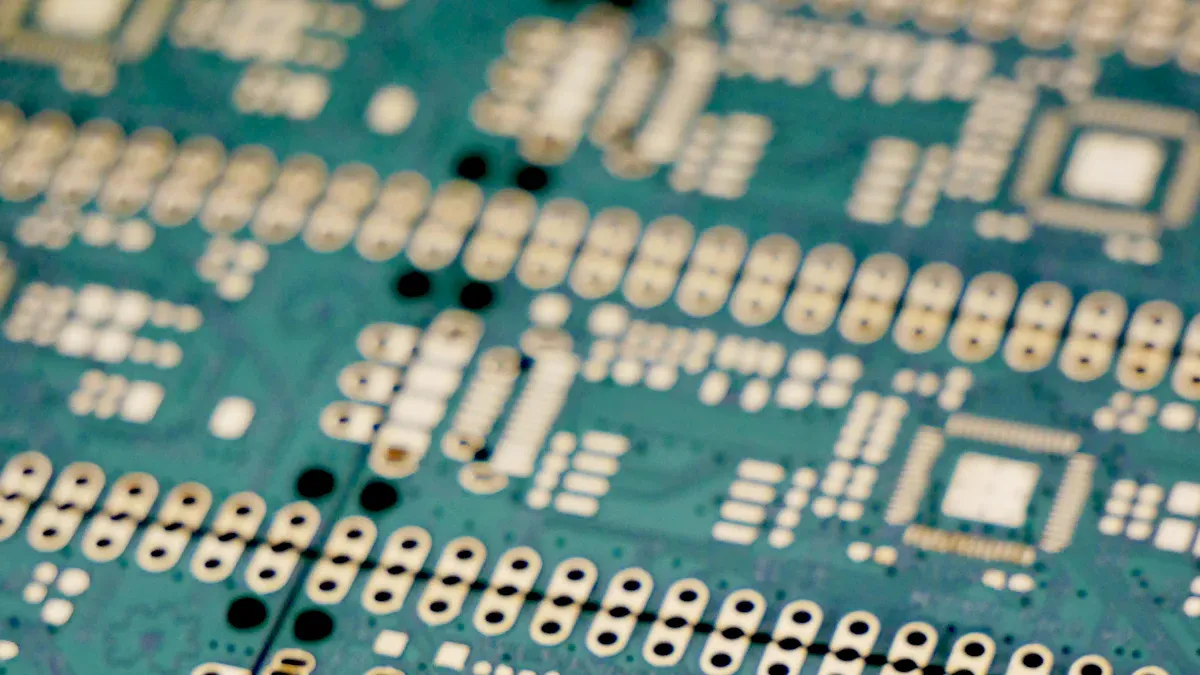

Image Source: unsplash

Achieving great copper-plating for half-hole PCBs needs modern tools. A gantry electroplating line helps with accuracy and dependability. It spreads metal evenly, which is key for complex PCB designs. Machines and robots make work faster and cut delays. This setup is crucial for today’s PCB production.

Key Takeaways

Gantry electroplating lines add even copper layers to half-hole PCBs. This improves their quality and how well they work.
Modern automation makes production faster, lowers mistakes, and cuts costs. It works well for both small and big orders.
Taking care of the gantry system is very important. It helps it work well for a long time and avoids expensive repairs.

Half-Hole PCBs and Copper-Plating Basics

Overview of Half-Hole PCBs

Half-hole PCBs, also called castellated hole PCBs, are special circuit boards. They have half-holes along the edges that are plated with copper. These holes let one PCB connect directly to another by soldering. The process includes drilling holes, plating them with copper, cutting them into half-holes, and smoothing the edges.

These PCBs are used for edge connectors, test points, and mounting parts. They have many benefits:

Save space in small designs.
Allow flexible ways to connect.
Improve signal quality for better performance.
Are a cheaper option for electronics.

But making half-hole PCBs is not easy. Vias must be placed carefully. Solder mask openings need to align perfectly. The board must stay strong during production.

Importance of Copper-Plating in PCB Performance

Copper-plating makes PCBs work better and last longer. It helps signals move faster and more efficiently. The type of copper finish affects how well the PCB performs. For example:

Copper Finish Type	Surface Smoothness (µm RMS)	Signal Loss Impact
ED Copper	2.0	Higher Signal Loss
Rolled Copper	0.35	Lower Signal Loss

Smooth copper, like rolled copper, lowers signal loss in high-frequency circuits. This improves signal strength and saves energy. Copper-plating also makes the PCB stronger and less likely to break.

Using advanced tools like gantry electroplating lines ensures even copper layers. This is important for strong connections in half-hole PCBs, especially for big projects.

Gantry Electroplating Lines: A Big Step Forward in PCB Making

How Gantry Electroplating Lines Work

A gantry electroplating line uses machines to add copper to PCBs. It works on a gantry system where robotic arms move PCBs through steps. These steps include cleaning, preparing, plating, and rinsing. Each step makes sure copper sticks evenly, even on tiny half-holes.

First, the PCB is cleaned to remove dirt. Then, it is prepared so copper can stick well. During plating, copper is added using a special liquid and electric currents. Finally, rinsing removes leftover chemicals, leaving a smooth surface.

This system reduces mistakes and gives steady results. It handles tricky designs like half-hole PCBs with great accuracy.

Why Gantry Electroplating Lines Are Great for Half-Hole PCBs

Using a gantry electroplating line has many benefits for making half-hole PCBs:

Accuracy and Quality: Machines apply copper evenly, lowering mistakes and improving PCB quality.
Faster Work: Robots and quick steps make production faster, meeting tight deadlines.
Saves Money: Less waste and fewer errors mean lower costs.
Works for Any Size: Whether small or big orders, the system adjusts easily.
Stronger PCBs: Even copper layers make PCBs tougher and last longer.

These advantages make gantry electroplating lines a must-have for top-notch PCB production.

Tip: Want better and stronger half-hole PCBs? A gantry electroplating line is a smart investment.

LT CIRCUIT’s Skill in Gantry Electroplating

At LT CIRCUIT, we use gantry electroplating to make excellent PCBs. Our advanced tools and skilled team ensure every PCB is high-quality.

We know how tricky copper-plating half-hole PCBs can be. That’s why we use the best gantry electroplating lines for perfect results. From small projects to large ones, we deliver great work every time.

When you choose LT CIRCUIT, you get:

The latest tools for perfect copper-plating.
Custom solutions made just for you.
A team focused on doing the best job.

Visit LT CIRCUIT’s website to see how we can help with your PCB needs.

Advantages of Gantry Electroplating Lines

Precision and Uniformity in Copper-Plating

Precision matters when making half-hole PCBs. Gantry electroplating lines spread copper evenly on the PCB surface. This even coating keeps the board working well. Uneven layers can cause weak connections or signal problems. These issues may affect how your device works.

Robots and sensors in the system remove human mistakes. They check every step carefully. Even tiny half-holes get the same copper as larger areas. This technology gives steady results, even for tricky designs.

Did you know? Smooth copper layers improve PCB performance and make them last longer.

Enhanced Efficiency and Cost Savings

Time and money are important in PCB production. Gantry electroplating lines speed up the process by automating steps. Cleaning, plating, and rinsing happen quickly and smoothly. This saves time and helps meet deadlines without lowering quality.

Automation reduces waste. The system uses just the right amount of copper and chemicals. This saves money and is better for the environment. Fewer mistakes mean fewer bad boards, cutting costs even more.

Investing in gantry electroplating lines gives great results while keeping costs low.

Scalability for Large-Scale PCB Production

Growing businesses need more PCBs. Gantry electroplating lines can handle bigger orders easily. The system adjusts to make more boards without losing quality.

Whether you need a few boards or many, the system fits your needs. Its flexibility helps manufacturers grow their operations. You can take on larger projects confidently, knowing the results will stay consistent.

Pro Tip: Growing demand means staying competitive. Gantry electroplating lines help you expand without raising costs or slowing production.

Using Gantry Electroplating Lines in PCB Production

Easy Steps to Set Up and Use

Setting up a gantry electroplating line takes planning and care. Follow these simple steps to get started:

Get the Area Ready: Pick a clean, open space with good airflow. Make sure the floor is strong enough for the equipment.
Set Up the Equipment: Place the gantry system, tanks, and robotic arms as instructed. Secure everything so it stays in place during use.
Hook Up Utilities: Connect the system to power, water, and air vents. Double-check that all connections are safe and secure.
Adjust the System: Set up the robotic arms and sensors to match PCB sizes. Test their movement to ensure they work correctly.
Do a Test Run: Try the system with a sample PCB before full production. Look for even copper plating and fix any problems.

By following these steps, you can set up your system quickly and avoid delays.

Tips to Keep It Working Well

Regular care helps your gantry electroplating line last longer and work better. Here’s how to maintain it:

Check important settings like pH (4.0-5.5) and heat (131-176°F) to keep plating conditions right.
Look at anodes and cathodes often to ensure copper spreads evenly.
Clean tanks and filters regularly to stop dirt from ruining the plating.
Inspect pumps and filters for damage. Fixing small issues early avoids big problems later.
Keep a log of maintenance tasks and stick to a schedule for checks and repairs.

Tip: Regular care not only keeps the system running but also prevents sudden breakdowns.

By following these tips, you’ll get great results and make your gantry electroplating line more efficient.

A gantry electroplating line is key for plating half-hole PCBs. It helps with accuracy, speeds up production, and handles big orders. Using this system gives steady results and lowers expenses. Working with LT CIRCUIT means getting top tools and expert help for better PCB making.

FAQ

Why are gantry electroplating lines better than older methods?

Gantry electroplating lines use robots for copper-plating. They coat evenly, make fewer mistakes, and work faster. Older methods can’t match this accuracy or speed.

Can gantry electroplating lines handle tricky PCB designs?

Yes! These systems are great for detailed designs like half-holes. Robots and sensors spread copper evenly, even on tiny parts.

Tip: Keep your gantry system in good shape for the best results.

Are gantry electroplating lines good for small projects?

Yes! These systems work for both small and big orders. Whether you need a few boards or many, they give steady quality and save time.

Did you know? LT CIRCUIT offers flexible solutions for all your PCB needs.
