    Optimal Burn-In Test Temperatures for PCB Reliability
    Image Source: pexels

    You should set Burn-In Test Temperatures from 90°C to 150°C for good results. This range uses careful temperature control to find early problems and make products last longer. The material you pick, like FR4 with a high Tg, is important. LT CIRCUIT uses strong materials and careful testing to make sure PCBs are high quality.

    Key Takeaways

    • Set burn-in test temperatures from 90°C to 150°C. This helps find early failures. It also protects your PCB from damage. - Pick PCB materials with high glass transition temperatures. Use advanced FR4 to handle heat better. This makes your PCB more reliable. - Watch the temperature closely during tests. Collect data to find weak parts early. This helps your products last longer.

    Burn-In Test Temperatures

    Burn-In Test Temperatures
    Image Source: pexels

    Recommended Range

    You need to set Burn-In Test Temperatures carefully to get the best results for your PCBs. Most experts recommend a range from 90°C to 150°C. This range works well for most printed circuit boards. It helps you find weak parts early and makes sure your boards last longer. If you use temperatures below 90°C, you may not catch early failures. If you go above 150°C, you risk damaging the board or its parts.

    You should always check the material of your PCB. For example, FR4 is a common material. It has a glass transition temperature (Tg) that you must not exceed. If you use high-Tg FR4, you can safely use higher Burn-In Test Temperatures. LT CIRCUIT uses advanced materials, so you can trust your boards to handle these tests.

    Tip: Always match your Burn-In Test Temperatures to the specs of your board and its components. This helps you avoid damage and get the most reliable results.

    Industry Standards

    You will find that many industry standards guide Burn-In Test Temperatures. IPC-9701 and MIL-STD-202 are two important standards. These documents give you rules for how to test PCBs and what temperatures to use. For most consumer electronics, you should follow the 90°C to 125°C range. For military or high-reliability products, you may need to use up to 150°C.

    Here is a quick table to help you see the common standards:

    Application Type

    Standard

    Typical Temperature Range

    Consumer Electronics

    IPC-9701

    90°C - 125°C

    Industrial Equipment

    MIL-STD-202

    100°C - 135°C

    Military/Aerospace

    MIL-STD-202

    125°C - 150°C

    You should always check the latest version of these standards. LT CIRCUIT follows these rules to make sure your boards meet the highest quality levels.

    Note: Following industry standards for Burn-In Test Temperatures helps you avoid early failures and keeps your products safe.

    Reliability Impact

    Early Failure Detection

    You can use burn-in testing to spot weak components before they reach your customers. The process works by mounting electronic parts on a board and placing it in a chamber with high heat and voltage. This stress, often above 125°C, pushes the board harder than normal use. Here is how the process helps you:

    1. Mount components on the burn-in board.

    2. Place the board in a chamber with elevated temperatures and voltage.

    3. Stress the board to reveal early failures in weak parts.

    4. Remove the board after hours or days and inspect for damage.

    5. Use the results to plot a bathtub curve, showing early failure rates.

    6. Remove faulty parts before shipping, which lowers warranty claims and repairs.

    7. Improve your product’s reliability and keep customers happy.

    Burn-in testing helps you find problems early, so you can fix them before your product leaves the factory. This step saves you money and protects your brand.

    Long-Term Performance

    You want your PCBs to last for years. Burn-In Test Temperatures play a key role in this goal. By using the right temperature range, you can simulate years of use in just a few days. Tests like thermal cycling and thermal shock expose your boards to changing temperatures, which helps you see how solder joints and materials hold up over time. These tests follow strict industry standards, such as IPC and JEDEC, to make sure your results are reliable.

    • Thermal cycling checks for solder joint fatigue and via cracking.

    • Thermal shock reveals problems like plated-through hole cracking.

    • Burn-in testing finds hidden defects that could cause failures later.

    You can use these results to improve your design, choose better materials, and make sure your PCBs meet high standards for long-term use.

    Influencing Factors

    PCB Materials

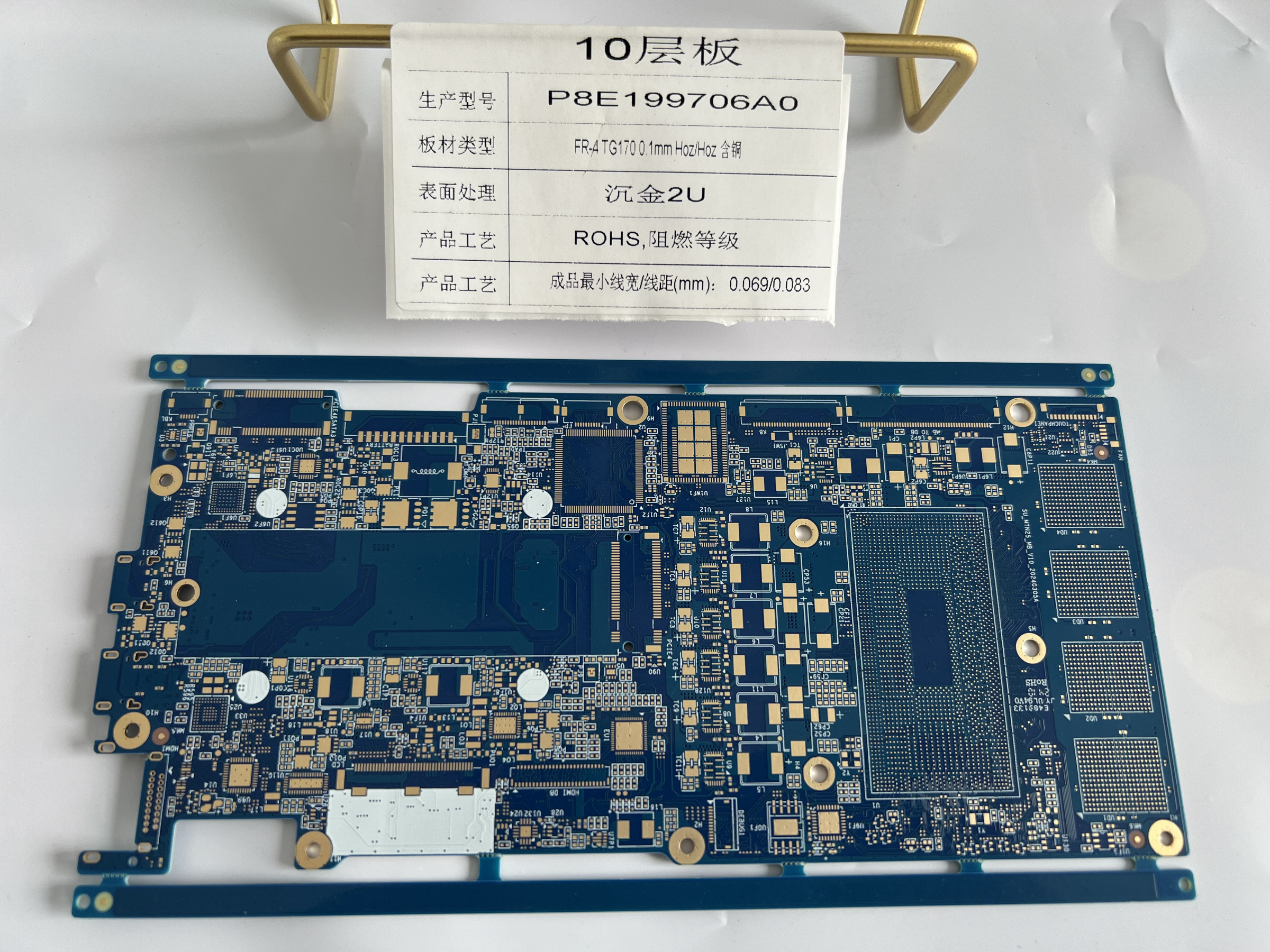

    Picking the right PCB material is very important for good Burn-In Test Temperatures. FR4 is used a lot because it stays strong and does not change shape in heat. If you use FR4 with a higher glass transition temperature, like FR4 Tg150, it will not crack or bend easily. This kind of FR4 can also handle heat for a long time without falling apart. High-quality FR4 helps your boards work well in hard places, like cars or airplanes. LT CIRCUIT picks special materials for every job, so your boards are always reliable.

    • FR4 Tg150 lets you put lots of parts close together.

    • It fights off chemicals and has great dielectric strength.

    • Using this material means fewer problems and less time fixing things.

    Component Specs

    You have to look closely at each part’s specs on your board. Burn-in testing can find weak parts and bad soldering. If you use parts that are checked carefully, you will have fewer early failures. Testing at hotter temperatures, even for just one or two days, can make failure rates go up a lot for every 10°C higher. LT CIRCUIT checks and tests all parts to make sure only the best ones are used.

    • Burn-in testing finds weak parts before you send out boards.

    • Smaller ICs or new designs can change how often things fail.

    • Watching how many defects happen helps make boards better.

    Application Needs

    You should make your burn-in process fit how your product will be used. Some things need a simple burn-in, but others need tests that act like real life. For example, RF devices need special RF burn-in tests. LT CIRCUIT makes custom tests for many industries, like electronics or airplanes. The team changes test heat and time for your product, using smart ways like HASS and HALT to keep tests safe and useful.

    • Burn-in test rules change with how often things fail and how products are made.

    • Changing heat up and down can find more problems than just using steady heat.

    • Engineers use lots of data to make each test just right.

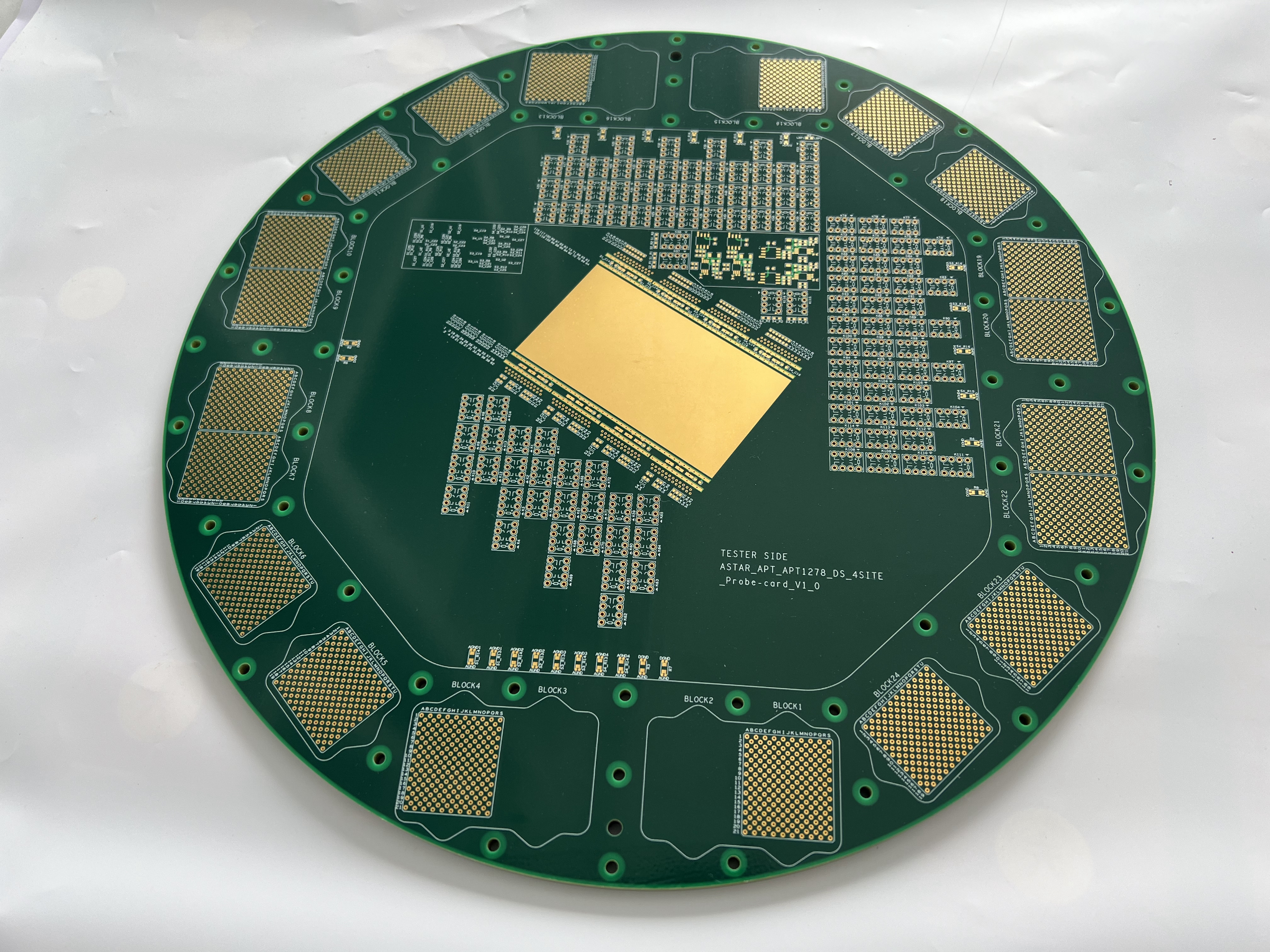

    LT CIRCUIT has many types of boards, like HDI and multilayer PCBs, to meet many needs. You get a board that works for your job and can handle tough use.

    Determining Temperature

    Data Analysis

    You can use data to pick the best burn-in temperature. Engineers look at real-life examples to help them choose. Different industries test their boards in special ways:

    Application Area

    Materials & Design Choices

    Testing Methodologies

    Performance Outcomes & Insights

    Automotive Engine Control Unit

    High-Tg FR-4, six-layer stack-up, epoxy adhesives

    Extended thermal cycling, vibration tests

    Reliable operation up to 150°C; early failure detection improved design before use

    Downhole Drilling Instrumentation

    Polyimide laminates, metal-core PCB, high-temp solder paste

    HALT (random vibration, temperature extremes)

    Stable data above 175°C; validated for tough underground conditions

    Satellite Transmitter (LEO)

    Ceramic substrates, rigid-flex design, coatings

    Thermal vacuum (TVAC) tests

    Consistent performance beyond 150°C in vacuum; minimal drift over time

    Industrial Furnace Controller

    Multi-layer polyimide, thermal vias, silicone coating

    Real-world operation at 160°C

    Reliable operation near heat source; protected against chemical fumes

    When you use the right materials and layout, your tests work better. Good testing methods help you pick the best Burn-In Test Temperatures.

    Safety Balance

    You need to keep your boards safe during burn-in. Here are some steps to help you balance safety and performance:

    • Choose PCB materials with the right glass transition temperature and good heat flow.

    • Place parts so heat spreads out and no hot spots form.

    • Use parts that can handle the highest temperature you expect.

    • Follow rules like IPC-2152 for safe current and trace width.

    • Run computer tests to find problems before real testing.

    • Use data tools, like Statistical Process Control, to watch results.

    • Try Pareto analysis to see which defects happen most.

    • Use Weibull modeling to study how often things fail and set the right test time and temperature.

    Tip: Plan carefully and watch your tests. This helps you avoid damage and get the best results from burn-in.

    Cost Considerations

    You want to save money but still have reliable boards. Burn-in testing costs more at first, but it saves money later. It finds problems early, so you avoid recalls and unhappy customers. New ovens, better sockets, and cooling make burn-in faster and cheaper. Feedback loops and heat sinks keep temperatures steady. Liquid cooling helps with very hot boards. Better materials and smart layouts let you test boards with more power and parts. Stamped spring probes lower socket costs and work well for making lots of boards.

    Burn-in testing is a smart way to protect your brand and make products last longer.

    Test Setup Tips

    Test Setup Tips
    Image Source: pexels

    Temperature Control

    You must keep the temperature steady during burn-in tests. Small mistakes in measuring heat or airflow can change your results. Use good tools like closed-loop wind tunnels and hot-wire anemometers. Advanced sensors help you measure heat and airflow very well. You can also use thermal imaging to see how heat moves on your board. This lets you find hot spots and fix them before they cause trouble.

    LT CIRCUIT uses top-quality instruments and strict testing steps. This makes sure your PCBs get tested the best way. When you control temperature well, you lower the chance of overheating. This also makes your reliability predictions better.

    Tip: Always check your tools before each test. Calibrate them often to keep your results correct.

    Data Collection

    You should collect and look at data during every burn-in test. Start by making clear rules for the test, like how long it will last and what counts as a pass or fail. Use strong data systems to track things like temperature, voltage, current, and how each part works. Keep your data safe so you can check it later.

    • Track how many parts fail and why.

    • Write down how long each part lasts.

    • Watch things like temperature and humidity.

    • Check your results often and change your test plans if needed.

    LT CIRCUIT uses these good steps to make sure every test gives you helpful information. Careful data collection helps you find patterns, spot problems early, and make your boards better over time.

    Common Challenges

    Overstress Risks

    You have to be careful about overstress risks during burn-in testing. If you push your PCB too much, it can get damaged instead of just showing weak spots. Using high temperatures and voltages can cause problems like solder breaking, via cracks, or even delamination. When you do thermal shock testing, fast temperature changes can stress your board. This stress might make parts fail sooner than they should. Standards like IPC-TM-650 and MIL-STD-202G help you test for these risks by changing the temperature from very cold to very hot.

    Always check the specs for each component before testing. If you use a higher temperature than allowed, your board might not last as long. Dynamic burn-in means you use signals while heating the board, which can show hidden problems. Static burn-in uses only heat and voltage to test how strong the board is over time. Both ways help you find early failures, but you need to balance stress and safety.

    Tip: Begin with lower temperatures and raise them slowly. This helps you stop sudden damage and gives you better results.

    Thermal Management

    Good thermal management keeps your PCB safe during burn-in. You need to control heat so your board does not get too hot. Junction temperature is very important. It shows how hot the inside of a part gets. If this temperature is too high, your board might fail faster.

    You can use different ways to manage heat:

    • Put heat sinks on hot parts to move heat away.

    • Make sure your case has good airflow and vents.

    • Keep sensitive parts away from things that get hot.

    • Use thermal vias in a grid to spread heat to other layers or copper planes.

    To find junction temperature, use power loss and thermal resistance from datasheets. These steps help keep your board cool and working well. Good thermal management, proven by engineering studies, helps your PCB pass tough burn-in tests and last longer in real life.

    Remember: Careful planning and smart design help you stop overheating and keep your products working well.

    You can make your PCB last longer if you pick the right burn-in temperature. Choose strong materials for your board. Set up your tests the right way. Trust experts like LT CIRCUIT to help you.

    Here is a checklist to help you plan:

    • Look at the specs for your PCB material

    • Pick test temperatures that are safe

    • Watch your data carefully

    • Talk to experts if you need help

    FAQ

    What is the best temperature for burn-in testing my PCB?

    You should use 90°C to 150°C. This range helps you find weak parts early and keeps your board safe.

    How long should I run a burn-in test?

    Most tests last from 8 to 48 hours. You can adjust the time based on your product and reliability needs.

    Can I use any PCB material for high-temperature burn-in?

    No. You need to choose materials with a high glass transition temperature (Tg). LT CIRCUIT offers advanced options for tough environments.
