How to Achieve Optimal HDI PCB Micro-via Filling Using VCP

You face hard problems when you work with hdi pcb designs. Micro-via filling is important for making boards strong and reliable. Vcp technology helps you fill micro-vias better than old ways. You use laser drilling to make exact holes for micro-vias. Many companies pick vcp because it gives your board these good things:

You see vcp use growing fast in Asia-Pacific as industries get bigger. North America and Europe care more about energy and being green. This technology is changing how hdi pcb boards are made.

Key Takeaways

• VCP technology fills micro-vias all the way. This makes connections strong and reliable in HDI PCBs.

• Laser drilling for micro-vias creates holes very precisely. Precise holes are important for filling them well.

• Quality control is very important. Use 3D X-ray and AOI inspections to find problems like voids or bubbles.

• VCP works better than older methods. It gives better signal integrity and mechanical stability.

• Using VCP can cost more money. But it makes boards higher quality and causes fewer problems later.

What Is VCP in HDI PCB Manufacturing?

Definition of Vacuum Via Filling

You might hear people talk about VCP when making pcbs. Here, VCP means Vacuum Via Filling. It does not mean Vertical Continuous Plating. This technology helps fill tiny holes called microvias in hdi pcb designs. Laser drilling makes these microvias very exact. VCP uses a special way to fill the holes with copper or resin. It does this under vacuum and pressure. This makes sure the holes are filled all the way with no gaps. You get a smooth surface that is ready for the next steps.

Why VCP Is Effective for Micro-vias

You want your pcb to work well and last a long time. VCP gives you many good things when filling microvias. Here are some reasons why this method works so well:

• You get good copper plating. This is important for strong electrical connections in microvias.

• The filling uses resins that can conduct or not conduct electricity. This makes microvias work right.

• VCP fills each via carefully. This helps stop gaps or air pockets that can cause trouble.

• The process uses both pressure and vacuum. This makes sure every hole gets filled.

• After filling, you clean off extra resin. This gets the surface ready for more steps.

This careful way helps your pcb keep signals clear and stay strong.

Role in High-density Interconnect Boards

You use VCP to make hdi boards work better. In high-density interconnect designs, every microvia must be filled just right. VCP makes sure the filling is complete. This helps both electrical and heat flow. You lower the chance of empty spots, so your hdi boards are more reliable. Vacuum filling takes out air before the fill material goes in. This step gives you the same results every time. That is important for signals and heat in busy pcb layouts. By using VCP, you help advanced hdi projects and meet what modern electronics need.

Micro-via Filling Process with VCP

Laser Drilling for Micro-vias

You begin the vcp process by using a laser to make microvias. These tiny holes connect copper layers in your pcb. You must follow rules to get good results. Here are some things to remember:

• Laser drill depth limits stop you from hurting layers.

• You can only stack a few blind or buried microvias.

• The aspect ratio means how deep the hole is compared to its width. It should stay safe.

Pick materials that work well with lasers. Thin layers, about 0.05 to 0.1 mm, help keep the right size and make drilling easier. Drill each layer after you press it together. This way, you get better accuracy. You need to check your laser tools often. This keeps drilling steady and stops rough via walls or mistakes. If you use special imaging, you can line up holes with copper layers. Always clean the holes after you drill them. This helps copper stick better during electroplating.

Tip: Use design rules from IPC-2226 and test your drill settings on sample boards. This helps you get more good boards and less rework.

Preparation and Cleaning Steps

After drilling, you must clean the microvias well. This step is important for strong copper connections. You use both brushes and chemicals to clean. Brushes and solvents take away burrs and resin left from drilling. You also put the pcb in baths. These baths wash off dust and get the surface ready for copper.

If you skip cleaning, you might get bubbles or empty spots in the vias. Water inside the holes can cause problems when you heat the board later. You can stop this by using a desmearing process and baking the pcb first. This makes sure copper sticks to the via walls and helps the next steps go well.

VCP Filling Procedure

Now you do the main vcp filling step. Put the pcb in a vacuum chamber. Machines like the MASS VCP-5000 use vacuum and pressure to fill every microvia with copper or epoxy. This method takes out air and stops empty spots from forming. You slowly raise the pressure, about 5 psi per second, to keep air out.

Here is a table with the main things for this step:

You want copper to fill all the holes. The right thickness and pressure give you strong, empty-free connections. This step also keeps signals clear and copper layers even. You can use both types of filling materials, depending on what you need. The vcp process works better than old ways like vertical continuous electroplating.

Note: The MASS VCP-5000 and other machines make the filling process better for hard hdi boards. They help you get the same good results every time, even with many layers.

Quality Control in HDI PCB Production

You must check your work after filling the microvias. Quality control is very important in hdi pcb making. You use 3D X-ray and AOI tools to look for empty spots, bubbles, or holes not filled all the way. You want no empty spots bigger than 5 microns. This step helps you find problems before they hurt the whole board.

Here are some problems you might see:

• Bubbles or empty spots inside the microvias

• Holes not filled all the way

• Water or dirt causing trouble when curing

You can stop these problems by using good materials, filtering your plating agents, and cleaning well. If you find a problem, you can fix it before the next step. This keeps your boards good and your yield high.

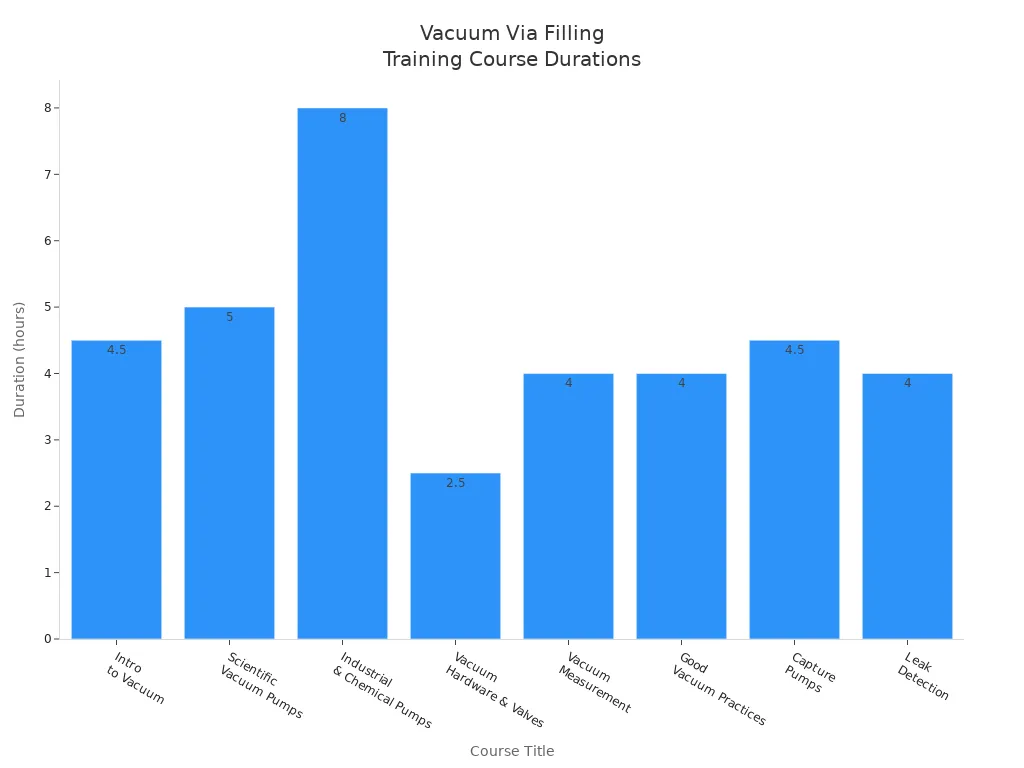

You also need trained operators to use vcp machines. Training teaches how to use the machines, stay safe, and spot problems. With good training, you get better boards and make fewer mistakes.

Did you know? DOE testing at PCBMASTER showed 40% fewer empty spots for 0.2 mm microvias after changing vacuum levels and blade speed. Random checks also helped find pressure drops before they caused big problems.

The vcp process, when done right, gives you strong copper connections, even thickness, and high quality in every pcb. You get more copper layers, better density, and clearer signals. This technology helps you make modern hdi designs.

Benefits of VCP for High-density Interconnect PCBs

Electrical and Mechanical Reliability

You want your hdi pcb to work well for a long time. Vcp fills microvias with copper to make strong electrical connections. This stops gaps and bubbles from forming in the holes. All the layers get filled the same way, so the board is even. Vcp uses both vacuum and pressure to fill every via. This means you do not get the problems from vertical continuous electroplating. Your pcb stays strong, even with many layers. You see fewer cracks and less stress on the board. Vcp helps you make good pcbs for hard jobs.

Tip: Using vcp makes your pcb better. Your boards can handle shocks and heat more easily.

Signal Integrity and Performance

You need clear signals in your high density interconnect pcbs. Vcp keeps copper layers even and fills all the holes. This helps your signals stay strong and clear. You do not lose signals or get noise like with old ways. Vcp makes sure each layer connects well. Your hdi pcb works better. Your board can handle fast signals and high density without problems.

• A company that makes hdi boards for smartphones had trouble with holes not filled all the way. This caused problems with the boards.

• They used vacuum-assisted filling and changed the solder mask thickness. They got:

  • 98% fewer problems with via filling

  • 15% better board yield

  • Fewer problems in the field from via issues

Design Flexibility in HDI Applications

You want to fit more parts and paths in your pcb. Vcp gives you more ways to design high-density interconnect boards. You can put vias right inside the pads for parts. This helps you keep signals clear in small spaces. You do not have to use old fanout ways. You save space and make heat and electricity flow better. Vcp lets you build advanced hdi boards with many layers and high density. You get more choices for making your pcb.

Note: Vacuum via filling helps you make better pcbs with more layers and even filling. You get better results than with vertical continuous electroplating or other old ways.

VCP vs. Other HDI Micro-via Filling Methods

Comparison with Horizontal Plating

Horizontal plating fills microvias in hdi pcb manufacturing. The pcb moves through a bath. Copper plates onto the layers. Copper builds up slowly. This method works well for simple boards. You see fewer problems with copper thickness. Sometimes, air gets trapped in vias. This can cause voids and lower quality. You must check copper layers often. This keeps density even. Horizontal plating does not always fill microvias all the way. You may need extra steps to fix gaps. VCP fills microvias better and leaves fewer voids. You get stronger layers and more reliable boards.

Comparison with Pulse Plating

Pulse plating uses short bursts of electricity. This plates copper onto the pcb. You control copper spreading better. This helps with thicker boards. You can adjust the process for even copper layers. Pulse plating helps fill microvias. You still see some voids. You must watch the process closely. VCP removes voids and makes boards stronger. You get better heat control in high density designs. VCP costs more than pulse plating. You pay 30% to 50% higher costs. The process is harder, but you get stronger copper layers.

• Pulse plating lets you control copper spreading.

• VCP removes voids and helps heat spread.

• VCP costs more and is harder to do.

Why Choose VCP for High Density Interconnect

You pick VCP for high density interconnect pcb designs. It fills microvias all the way. You get strong copper layers and good connections. VCP helps you build via-in-pad designs for ball grid arrays. You improve signal quality and board strength. You see better heat control and mechanical stability. VCP works well for small vias. You must watch for air getting trapped. The filling order affects how the board works. You pay more for VCP, but you get better boards.

Tip: VCP gives you better copper layers and fewer voids. You get higher density and quality in printed circuit boards.

You can get great results in hdi pcb micro-via filling by using smart steps. Begin with laser-drilled vias and keep the aspect ratio below 0.25 mm for a better fill. Talk to your fabricator early and use cleanrooms to make the boards better. Check every pcb with X-ray and write down each step you take. Do not overfill, or you might get dome problems. VCP makes boards stronger than vertical continuous electroplating and helps you make boards fast and well. Look out for new ideas like nano vias and flexible designs to stay ahead.

FAQ

What is the main benefit of using VCP for micro-via filling?

You get stronger and more reliable PCBs. VCP fills every microvia with copper or epoxy. This stops air pockets and gaps. Your board works better and lasts longer.

How do you check if micro-vias are filled correctly?

You use 3D X-ray and AOI machines. These tools find empty spots or bubbles inside the vias. You can spot problems early and fix them before moving to the next step.

Can you use VCP for all types of HDI PCBs?

You can use VCP for most HDI PCBs, especially those with many layers or small vias. Some simple boards may not need VCP. Always talk to your fabricator to pick the best method.

Does VCP increase the cost of PCB manufacturing?

Yes, VCP costs more than some older methods. You pay for better machines and extra checks. You get higher quality and fewer problems, so you save money in the long run.
