Why Tight PCB Impedance Tolerance Matters for Reliable Data Transmission

Tight pcb impedance tolerance is very important for good data transmission. When pcb design changes for high speed, signal integrity needs strict pcb tolerances. Small changes in pcb tolerances can mess up signals, cause reflections, or make more data errors. Impedance control helps keep signals steady on printed circuit boards. High-speed uses need pcb impedance tolerance within ±5% for good signals. New transmission standards need tight pcb tolerances because uneven tolerances hurt signal transmission and pcb performance.

Key Takeaways

• Keeping PCB impedance tolerance tight, usually within ±5%, helps signals stay clear and strong. This stops data errors and signal loss in fast circuits.

• Small changes in trace width, dielectric materials, or how it is made can cause big impedance shifts. These shifts can lead to signal reflections, jitter, and electromagnetic interference.

• Following good design rules, picking stable materials, working with manufacturers, and using simulation and testing tools help keep tight impedance control. This makes the PCB work better and last longer.

PCB Impedance Basics

Characteristic Impedance Defined

Engineers use characteristic impedance to show how a pcb trace slows down an electrical signal. This value depends on how wide the trace is, how thick the copper is, what the dielectric material is, and the microstrip structure. On printed circuit boards, characteristic impedance is very important for high-speed design. Most single-ended traces try to reach 50 ohms, and differential pairs aim for about 90 ohms. The microstrip structure puts a trace above a ground plane, and it is common in modern pcb layouts. Designers must keep tolerances tight, usually within ±5%, to keep trace impedance steady. RF and microwave circuits sometimes need even tighter tolerances, like ±2%. The microstrip structure and stackup choices change characteristic impedance and signal quality.

• Characteristic impedance depends on:

  • Trace shape and width

  • Dielectric materials and thickness

  • Layer stack-up and microstrip structure

  • Manufacturing tolerances

Why Signal Integrity Depends on Impedance

Signal integrity means signals move through the pcb without getting messed up or lost. When characteristic impedance matches at the source, trace, and receiver, signals stay clear and strong. If the trace impedance changes, reflections and ringing can happen. These problems get worse when speeds are higher. Even small changes in tolerances can cause data mistakes or timing problems. Trace branches, vias, and connector pins can make impedance mismatches. Controlled impedance helps keep signals steady and lowers the chance of errors. Microstrip traces with tight tolerances help keep signals strong in fast digital circuits. Engineers use controlled impedance to stop jitter, noise, and waveform problems.

Note: Keeping tight tolerances for characteristic impedance is very important for reliable data transmission, especially as pcb speeds get faster.

Factors Affecting PCB Impedance Tolerance

Trace Width and PCB Tolerances

Trace width is a big factor for characteristic impedance in pcb design. Even a tiny change in trace width can change impedance by a few ohms. For example, if the trace width changes by 0.025 mm, impedance can change by 5 to 6 ohms. Manufacturers try to keep trace width within ±10% to control impedance. Wider traces make impedance lower. Narrower traces make impedance higher. Differential traces need exact width and spacing to keep the right impedance. If trace width is not correct, signal integrity gets worse and reflections can happen. Microstrip traces above a ground plane are very sensitive to these changes.

Dielectric Materials and Stackup

Dielectric materials and stackup choices change characteristic impedance and pcb tolerances. The dielectric constant (Dk) sets how fast signals move and the capacitance between layers. A lower Dk makes impedance and signal speed go up. A higher Dk makes impedance go down. Changes in dielectric thickness or Dk can change impedance and hurt signal integrity. Microstrip and differential traces need steady dielectric properties to keep impedance tight. Stackup design, like the number of layers and how they are arranged, also affects characteristic impedance. Symmetrical stackups and even dielectric thickness help keep the impedance target and lower changes in impedance.

Tip: Always pick dielectric materials with steady Dk and low loss tangent for high-speed pcb designs. This helps keep signal integrity and tight pcb tolerances.

Manufacturing Variations

Manufacturing steps can change characteristic impedance and pcb tolerances. Some common causes are uneven trace widths, too much etching, and changes in dielectric thickness. For example, if a trace is 4.8 mils instead of 5 mils, impedance goes up and signal reflections can happen. Copper plating, drilling, and resin content also affect the impedance target. Microstrip and differential traces are very sensitive to these changes. Manufacturers use test coupons and simulation tools to check and control tolerances. This helps keep signal return paths steady and protects signal integrity.

Impedance Tolerance Impact

Signal Reflections and Data Errors

If pcb impedance tolerance is not tight, signals can have problems. When characteristic impedance does not match, signals bounce back on the trace. These bounces mess up the signal and can cause mistakes in data. In fast pcb designs, even a small change in impedance can make signals look strange. TDR testing can find these problems. For example, a trace made for 50 ohms might end up at 60 ohms because of mistakes in making the board. This big difference makes more signals bounce and can ruin data, especially in things like DDR4 memory or 5G.

When impedance does not match between the transmitter, trace, and receiver, signals bounce back and forth. This bouncing is called ringing. Ringing changes voltage levels and slows down signals. VSWR is a way to measure how much mismatch there is. A perfect match is 1:1. Higher numbers mean more mismatch and more chance of losing data. Power is lost and the system works less well, so sending signals right becomes hard.

• If impedance does not match in fast pcb traces, signals bounce and get messed up.

• These bounces make it harder to send signals and can cause mistakes in data.

• Changes in trace shape, board materials, vias, and parts can cause impedance mismatch.

• TDR testing helps engineers find and fix these problems.

• Using resistors in the right way helps match impedance and stop bounces.

• Good design rules, like keeping trace width steady and picking the right materials, help keep impedance right.

• Making sure differential pairs are the same length and not using stubs helps match impedance.

• Keeping impedance steady is very important for stopping data mistakes in fast pcb systems.

Note: Bad impedance tolerance can make whole systems stop working, especially in fast electronics where signals must stay clear and correct.

Jitter, EMI, and Waveform Distortion

Loose impedance tolerance does not just cause bounces. It also makes jitter, EMI, and waveform distortion worse. Jitter means signals do not come at the right time. In fast digital signals, even small timing mistakes can make bits late or early, which can mess up data.

Bad pcb impedance tolerance makes EMI worse. If return paths are not good, inductance goes up and magnetic fields make noise. Traces without good ground planes can act like antennas and spread noise. This noise can mess up other circuits and make devices fail tests.

• Bad pcb impedance control makes mismatches, which cause ringing and overshoot.

• These problems make more noise, which raises EMI.

• Bad routing and weak return paths make more inductance and create antennas.

• Good impedance control stops bounces and keeps return paths good, which lowers EMI.

Loose tolerance also messes up waveforms. Bounced signals mix with the main signal, causing overshoot, undershoot, and ringing. These problems make it hard for receivers to read the right logic level. In fast pcb designs, this can cause lost data and make things work badly.

A real example is a network switch made for fast signals. Engineers saw that loose impedance tolerance made too much jitter and EMI. The switch failed tests and lost data during use. After making the tolerance tighter and fixing the stackup, the switch passed all tests and worked well.

Tip: Always use simulation tools and TDR testing to check that pcb impedance tolerance is right. This helps keep signals clear and makes sure data is sent the right way.

Achieving Tight PCB Impedance Tolerance

PCB Design Best Practices

Engineers get tight pcb impedance tolerance by using good design rules. They follow standards like IPC-2221 and IPC-2222. These rules tell them how to keep pcb tolerances and characteristic impedance right. Design for Manufacturability, or DFM, helps match trace width and spacing to what factories can make. This lowers mistakes and keeps tolerances in the safe range.

• Engineers watch trace width, length, and spacing very closely.

• They keep differential pairs spaced and matched in length for steady characteristic impedance.

• They put vias and holes in smart places to stop impedance changes.

• Using controlled impedance routing, like microstrip and stripline, helps hit the right target.

• Engineers talk with manufacturers to match stackup, materials, and tolerances to what can be built.

• Prototypes and early checks help find problems before making lots of boards.

Engineers pick materials with steady dielectric constants. They do not use sharp bends and keep return paths under signal traces. These steps help signals stay strong and lower the chance of reflections or data mistakes.

Tip: Using simulation tools early helps engineers see how characteristic impedance will act. This lets them fix the pcb design before making it.

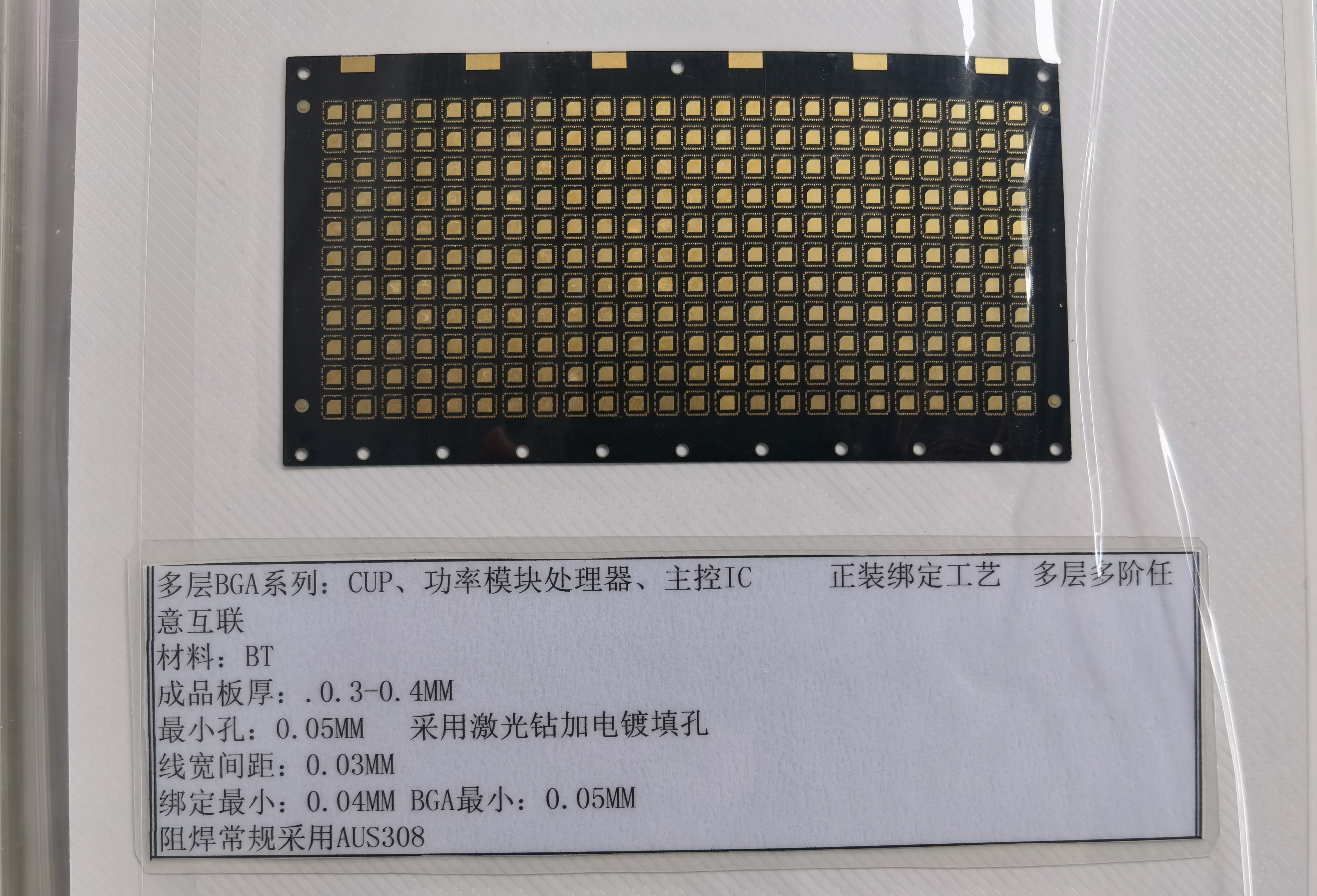

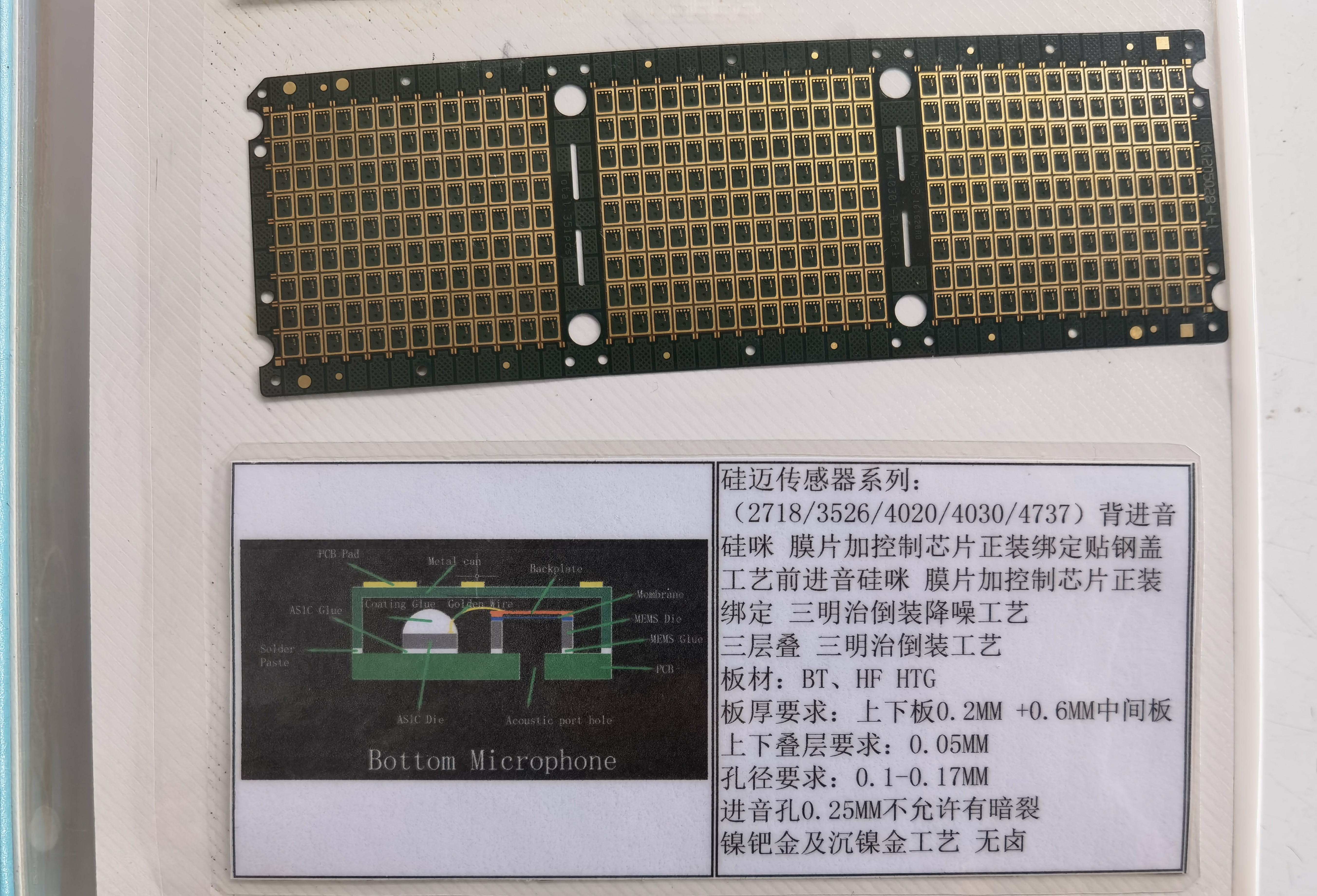

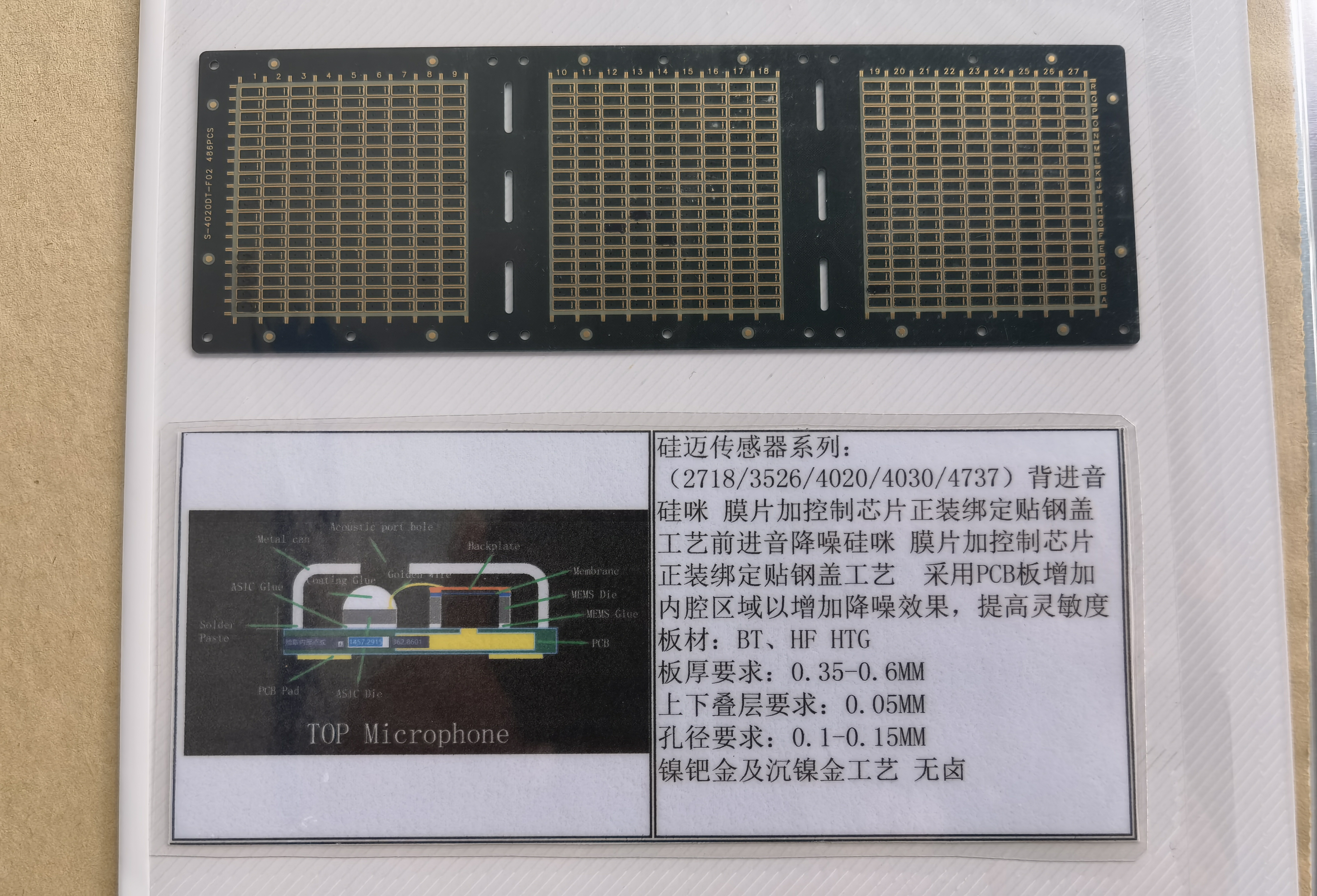

Manufacturing Controls

Manufacturers help keep pcb impedance tolerance tight. They use high-quality materials like Rogers, Taconic, or Isola laminates. These materials keep the dielectric constant steady. Special machines control trace width, copper thickness, and layer spacing very carefully. Automated etching and lamination make sure every pcb is made the same way.

1. Manufacturers set clear goals for characteristic impedance and tolerances.

2. They pick stackups and materials that help control impedance.

3. Simulation software, like HyperLynx or Ansys HFSS, checks impedance before making boards.

4. Automated steps keep trace width and spacing the same on all boards.

5. Impedance coupons are put on each panel for quality checks.

6. Time Domain Reflectometry (TDR) testers check real impedance after making the boards.

7. Manufacturers change via shapes and smooth copper to help signal integrity.

8. They watch impedance during the product’s life to keep it in range.

Manufacturers write down every step. They add impedance tables and details in the drawings. First article reports and TDR coupon checks show if each pcb meets the rules. If a board is not right, they fix it before making more.

Note: Tighter pcb tolerances and controlled impedance make building harder and cost more. But these steps stop big failures and keep signals working well in fast systems.

Simulation and Testing

Simulation and testing are key for tight pcb impedance tolerance. Engineers use tools like Altium Designer, Cadence Allegro, and ANSYS SIwave. These tools help them model characteristic impedance and run 3D field checks. They can also simulate TDR results before making the board.

• Pre-layout simulation lets engineers set stackup, trace shape, and materials to guess impedance.

• Post-layout checks look for mismatches or extra effects in the finished design.

• Differential pair impedance control makes sure fast interfaces like USB and Ethernet meet strict rules.

• TDR simulation finds bumps along traces, so engineers can fix them early.

After making the boards, quality teams use TDR and Vector Network Analysis (VNA) to measure real impedance. Impedance test coupons on each pcb panel help check if the board meets the target. Flying probe testing adds more checks, which is good for tricky boards.

Automated impedance testers catch problems early and help make more good boards. This means fewer bad boards and better reliability. Engineers and manufacturers work together to watch impedance during the product’s life, making sure every pcb stays in the right range.

Callout: Using simulation, testing, and good records helps keep pcb impedance tolerance inside the strict limits needed for fast signals.

Keeping tight PCB tolerances helps signals move without problems and stay strong. Engineers need to set clear rules for tolerances. They should work with manufacturers early and test sample boards. Tight tolerances stop expensive problems and help things last longer in important systems. When tolerances stay the same, engineers make fewer mistakes and build fast designs that work well.

FAQ

What is the typical impedance tolerance for high-speed PCBs?

Most high-speed PCBs need impedance tolerance to be within ±5%. Some special designs, like RF circuits, need even tighter control, such as ±2%.

How do manufacturers verify PCB impedance?

Manufacturers check PCB impedance using Time Domain Reflectometry (TDR) and impedance test coupons. These tools help make sure the finished PCB meets the right impedance numbers.

Why does impedance mismatch cause data errors?

Impedance mismatch makes signals bounce back. These bounces change the signal shape. This can cause data errors and make communication in high-speed circuits not work well.
