    7 Critical Quality Control Steps for Assembling High Current Heavy Copper PCBs in Automotive Electronics

    avatar
    Tony Zh Yi
    ·June 5, 2025
    ·10 min read

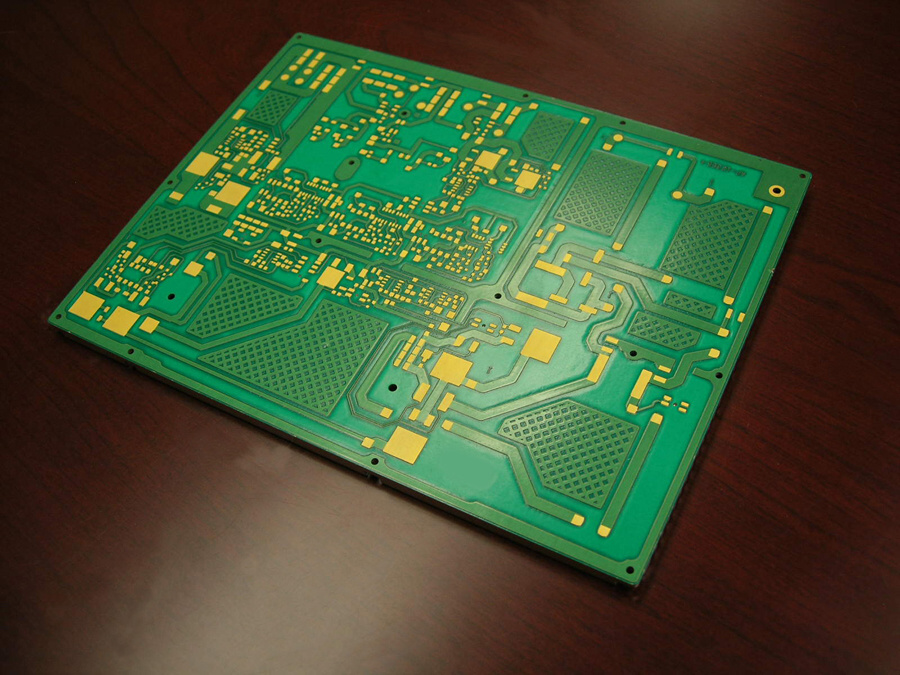

    7 Critical Quality Control Steps for Assembling High Current Heavy Copper PCBs in Automotive Electronics
    Image Source: unsplash

    Quality checks are very important for safe and reliable heavy copper PCBs in cars. These boards carry a lot of electricity, so they must work well. The car electronics market is now worth over $150 billion, showing the need for better PCBs. To ensure high-quality PCBs, it is essential to follow the Quality Control Steps, which include seven key actions: check materials, test designs, manage heat, drill carefully, control soldering, test electricity, and inspect at the end. Each of these steps helps create strong boards that work reliably and perform at their best.

    Key Takeaways

    • Follow seven main steps for quality control: check materials, test designs, handle heat, drill holes, manage soldering, test electricity, and inspect at the end. This keeps heavy copper PCBs safe and reliable.

    • Use automatic optical inspection (AOI) tools to check materials. AOI finds problems like extra copper or short circuits fast. This makes the PCBs more accurate and dependable.

    • Do detailed functional tests to make sure PCBs work properly. These tests lower failure rates and help PCBs perform well in cars.

    Material Inspection for Heavy Copper PCBs

    Checking Copper Thickness for High Current Use

    Copper thickness is very important for heavy copper PCBs. It helps the board handle high electricity without overheating or breaking. Copper layers must meet the needed standards to work well. Automatic optical inspection (AOI) tools are very helpful for this. These tools find problems like leftover copper or short circuits quickly and accurately. Using AOI gives better results than checking by hand. It makes the boards more reliable and precise.

    Testing Substrate Strength for Long Life

    The substrate is the base of a PCB. Its quality affects how long the PCB lasts. Substrates must handle heat, moisture, and shaking without damage. Tools like MATLAB and methods like Weibull distribution help test how strong substrates are. They predict how substrates will perform in real use. Low-cost natural fiber (LCNF) substrates absorb less water and change size less. This makes them a good choice for high current PCBs.

    Substrate Type

    Moisture Absorption (%)

    Dimensional Change (%)

    LCNF at 85% RH

    9.5

    0.07 - 0.11

    LCNF at 50% RH

    4.0

    0.11 - 0.13

    Conventional PCB

    5.6 (minimum requirement)

    N/A

    Checking Raw Materials for Uniform Quality

    Raw materials must be consistent to make good heavy copper PCBs. Certifications like RoHS, UL, and ISO 9001 help ensure quality and safety. RoHS limits harmful substances in materials. UL checks fire safety and electrical stability. ISO 9001 focuses on improving quality and customer satisfaction. Using certified materials makes PCBs safer, reliable, and eco-friendly.

    Certification

    Scope

    Impact on PCB Quality Assurance

    RoHS

    Limits hazardous substances in PCB materials

    Ensures environmentally compliant production

    UL

    Focuses on safety and fire resistance of PCBs

    Confirms safety standards for fire resistance and stability

    ISO 9001

    Quality management system for continuous improvement

    Establishes consistent quality and customer satisfaction

    PCB Design Validation for High Current Handling

    Checking Designs for Car Standards

    Design checks are key to making sure PCBs meet car rules. Focus on grounding, signal paths, and part placement to lower EMI. Good grounding gives return currents a safe path, cutting EMI risks. Methods like star grounding and ground planes work well. Keep signal paths short and spaced to improve EMI control. Place sensitive parts far from noisy areas. Add capacitors near power pins to reduce electrical noise. These steps help your PCB work well in tough car conditions.

    Using Simulations to Test High Current

    Simulations help check if your PCB can handle high current. Tools like Celsius Thermal Solver find problem spots in current flow. Keep current density below 15A/mm² to stay safe. Simulations also track heat levels in parts. For example, a Q1 MOSFET might hit 94.06°C, while others stay cooler. This shows good heat control. Simulations prove your PCB can work safely in real-life situations.

    Following Industry Rules for Safety

    Following rules makes your PCB safe and reliable. Standards like IPC-A-600 and IPC-2221 guide design and checks. IPC-A-600 focuses on how PCBs should look. IPC-2221 gives general design rules. IPC-2581 helps with data for making PCBs. IPC-7351 sets rules for surface parts. Following these rules avoids costly recalls and protects your brand. These steps ensure your PCB meets strict car industry needs.

    Thermal Management Testing in Heavy Copper PCBs

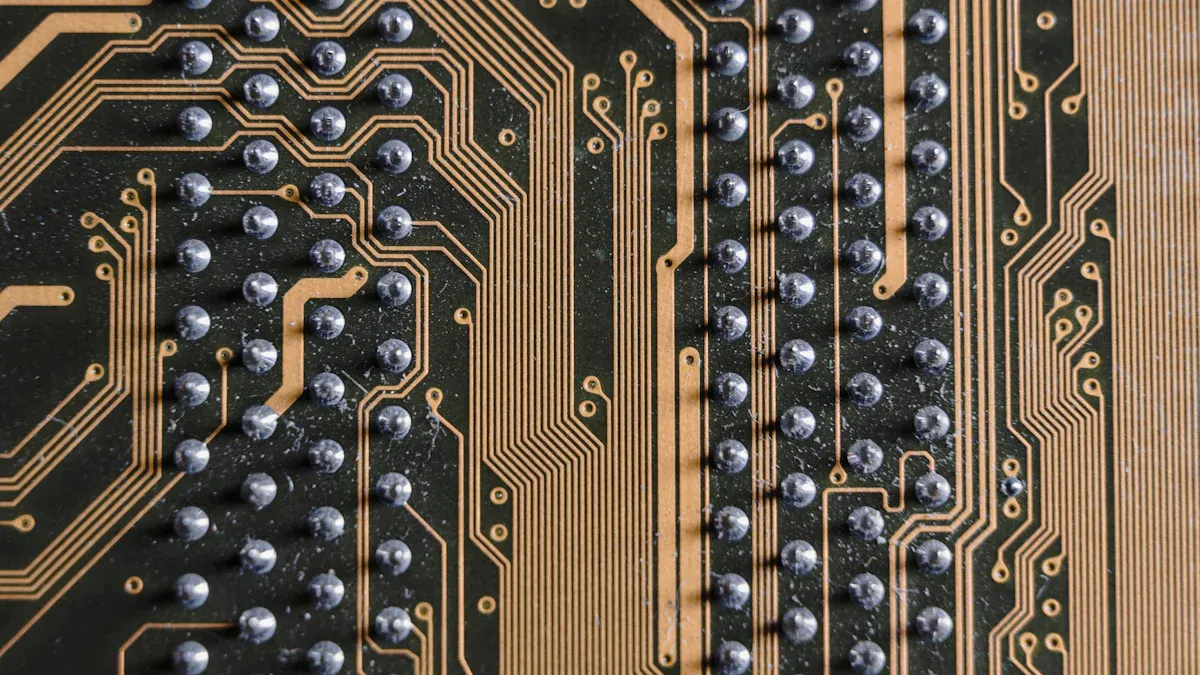

    Thermal Management Testing in Heavy Copper PCBs
    Image Source: pexels

    Testing How Well Heat Spreads

    Good heat control is very important for heavy copper PCBs. These PCBs must handle heat from powerful circuits. Studies show better fin designs can improve heat spreading by 30%-50%. Thick copper, 4 oz or more, moves heat better than thin copper. This makes it great for high-power uses.

    To check heat spreading, measure temperature drops with different fin sizes. For example:

    Fin Length (mm)

    Temperature Drop (°C)

    20-30

    Over 5

    30-40

    About 2

    Sometimes, temperature drops range from 15.3% (98.3°C to 83.2°C) to 18.5% (108.4°C to 88.6°C). These results show why heavy copper PCBs are good for managing heat in strong circuits.

    Checking Heat Strength Under Pressure

    Heat strength means the PCB works well in tough conditions. Stress tests find problems like cracks from heat changes or repeated use. For example, tiny holes at grain edges can cause cracks. These cracks raise peak temperatures by up to 6°C.

    Problem Type

    Details

    Failure Cause

    Heat mismatch from repeated use breaks TSV-Cu.

    Heat Resistance Increase

    Higher resistance causes big temperature jumps at connections.

    Peak Temperature Jump

    Goes from 84.7°C to 126.9°C due to cracks or resistance.

    Fixing these problems makes heavy copper PCBs last longer in high-power setups.

    Finding and Fixing Hot Areas

    Hot areas can hurt how your circuit board works. Tools like sound waves and machine learning help find and sort these spots. Heat modeling helps design better layouts to stop overheating.

    For better cooling, small channels inside the PCB lower heat resistance a lot. Heat tests and airflow simulations also check cooling performance. These methods keep your PCB working well, even with heavy use. Heavy copper PCBs are a strong choice for high-power circuits.

    Precision Drilling and Plating for PCB Strength

    Making Sure Holes Are Drilled Correctly

    Drilling holes the right way is very important. It keeps the board strong and makes sure connections work well. Modern machines drill with over 95% accuracy. This meets the standards for making heavy copper PCBs.

    Metric

    Standard

    Drilling Accuracy Rate

    Over 95%

    Machine Usage Rate

    85% or more

    Safety Issues

    Less than 2 per month

    New technology has made drilling even better. It helps place holes in the best spots for high current boards. Following these rules makes sure your PCB works well in powerful setups.

    Keeping Plating Smooth for Good Power Flow

    Plating must be smooth to help electricity move easily. Good plating stops short circuits and keeps the board safe. Tests check if the plating can handle high current and keep circuits working.

    Test Type

    Purpose

    Electrical Testing

    Checks for smooth power flow and no short circuits.

    Voltage Withstand Test

    Tests how much voltage the board can safely handle.

    Thicker copper plating carries more electricity. This makes it great for heavy copper PCBs. Keeping plating quality high ensures your board works reliably.

    Watching Plating Quality for Long-Lasting Boards

    Quality checks during plating keep boards strong and working well. Charts track how clean the plating baths are. They help plan when to clean or refill the baths. Charts also show past problems to fix future issues.

    Evidence

    Details

    Charts track bath cleanliness and help plan maintenance.

    This extends the life of the plating solution.

    Charts show past problems to find and fix causes.

    Helps improve processes and avoid defects.

    Charts prove the plating meets strict rules.

    Shows customers and regulators the board is high quality.

    Trends in charts help make plating better and faster.

    Improves efficiency and keeps quality high.

    Using these checks keeps operators informed about plating quality. This ensures your PCB stays strong and works well in high-power setups.

    Soldering Process Control in High Current PCB Assembly

    Using the Right Soldering Methods

    Good soldering is key for making strong heavy copper PCBs. It helps create solid connections and ensures the board works well. Follow clear rules about soldering tools, methods, and training. For example, use soldering irons with temperature control and lead-free solder like SAC305 for better joints.

    Checking and testing are very important for quality. Smooth solder joints and proper wetting angles show good assembly. Tracking defects and sampling rates helps find ways to improve the process.

    Aspect

    Details

    Workmanship Rules

    Explains soldering methods, training needs, and allowed tools.

    Inspection & Testing

    Shows how to check and measure assembly quality.

    Quality Control Stats

    Tracks defects, sampling, and other quality measures.

    Avoiding Solder Joint Problems in Heavy Copper PCBs

    Broken solder joints can make high current PCBs fail. Studies show 30% of BGA joints break after 1,000 heat cycles from -40°F to +257°F. To stop this, use flexible solder like SAC305 to lower stress. Adding protective coatings shields joints from moisture and shaking.

    • Research shows joint breaks happen where strain energy is highest.

    • Flexible solder and coatings cut down failure rates in heavy copper PCBs.

    Failure Stats

    Solutions

    30% of BGA joints fail after 1,000 heat cycles (-40°F to +257°F)

    Use flexible solder (SAC305), Add protective coatings

    Keeping Soldering Temperatures Steady

    Controlling heat during soldering is very important. Live systems watch tip temperature and solder settings for each joint. These systems track tip shape, solder time, and other details to keep conditions just right.

    Tests with digital soldering machines show accurate heat control between 300°F and 800°F. Real-time checks catch temperature changes, ensuring steady solder quality. For heavy copper PCBs, stable heat stops overheating and keeps connections strong.

    • Systems track soldering heat live to ensure proper conditions.

    • Digital machines give precise heat control, improving PCB reliability.

    Electrical Testing for High Current PCB Performance

    Checking Connections with Continuity Testing

    Continuity testing checks if all connections in your PCB work. It finds broken paths or open circuits that stop power flow. A small voltage is applied, and resistance is measured to confirm connections. For example, a good test shows no open or short circuits:

    Test Type

    Method

    Pass Criteria

    Continuity Test

    Apply voltage, check response

    No open or short circuits

    Research by the Electronics Industry Association (EIA) shows electrical testing lowers defects by 30%. This makes continuity testing very important for reliable heavy copper PCBs.

    Testing Insulation Resistance for Safety

    Insulation resistance testing checks the safety between conductive layers. This is crucial for car electronics, where high current can cause breakdowns. A voltage of 500VDC or 1000VDC is applied to find leaks and test insulation. After charging, only resistive current flows, giving accurate results. Following IPC-TM-650 rules ensures your PCB meets safety standards.

    Measuring Current-Carrying Ability

    Testing how much current your PCB traces can handle is key. Standards like IPC-2152 give updated charts for modern designs. Unlike older IPC-2221 methods, IPC-2152 allows smaller traces without losing performance. For heavy copper PCBs, this means better designs with strong power flow. Proper testing ensures your PCB handles current safely without overheating.

    Final Inspection and Functional Testing by LT CIRCUIT

    Checking for Physical Problems with Visual Inspections

    Looking at the PCB closely helps find physical problems. Issues like too much or too little solder, uneven copper, or cracks can weaken the board. Using physics-based models finds all defects with no mistakes.

    Inspection Method

    Defect Found Rate

    Mistake Rate

    Physics-based defect model

    100%

    0%

    Manual checks are cheaper but can have human errors. Automated systems give better and steady results. Studies show checking solder joints well lowers failures by over 40%. Careful visual checks make sure your PCB meets strict quality rules.

    Testing How the PCB Works for Cars

    Functional tests check if the PCB works in real-life situations. LT CIRCUIT uses smart methods to test high current PCBs. These include checking if designs meet needs and testing how parts communicate.

    Testing Method

    Purpose

    Requirement-based test

    Finds design problems and checks all needs are met.

    Interface Testing

    Confirms parts communicate well and finds early issues.

    Fault Injection Testing

    Tests how software reacts to errors by adding faults.

    Resource Usage Test

    Checks software doesn’t use too much memory or CPU.

    Back-to-back Comparison Test

    Compares software actions to its model for accuracy.

    These tests lower failure rates to just 0.0003%, compared to 0.03% without them. Finding problems early saves money and ensures the PCB works well in cars.

    Following Rules for Car PCB Safety

    Following car industry rules keeps heavy copper PCBs safe and strong. LT CIRCUIT follows strict rules like ISO 26262 for safety and IPC-6012DA for making reliable boards.

    Standard

    Purpose

    Benefit

    ISO 26262

    Makes sure car PCBs are safe

    Reduces risks in safety-critical systems.

    IPC-6012DA

    Sets rules for making strong and reliable PCBs

    Lowers chances of failures in real-world use.

    AEC-Q100 to Q200

    Creates tests for car parts to handle tough conditions

    Ensures parts last longer and work under stress.

    By following these rules, you can trust your PCB will work well in tough conditions. LT CIRCUIT ensures every board meets top safety and quality standards.

    Heavy copper PCBs need careful checks to stay safe and reliable in car electronics.

    • Seven Steps Recap: Check materials, test designs, manage heat, drill holes, control soldering, test electricity, and inspect at the end.

      🛠 Tip: Doing these steps helps your PCB handle high current safely.

    LT CIRCUIT’s skills provide top-quality solutions for tough uses.

    FAQ

    Why are heavy copper PCBs good for car electronics?

    Heavy copper PCBs carry strong currents and spread heat well. They are tough and work reliably in hard car conditions.

    How does LT CIRCUIT make sure PCBs are high quality?

    LT CIRCUIT uses strict rules like ISO 26262 and IPC-6012DA. Careful tests and checks ensure the PCBs are safe and dependable.

    Why is heat control important for heavy copper PCBs?

    Good heat control stops overheating and keeps the PCB working longer. It helps the PCB stay steady in high-power setups.
