The impact of RoHS on PCBs

RoHS rules have changed how printed circuit boards are made by taking out dangerous materials from PCB parts. The rohs impact includes using lead-free solder, safer flame blockers, and new ways to design parts. Engineers and makers need to know about these changes, because rohs rules now need careful material choices, new ways to make things, and regular checks for quality in every printed circuit board.

Key Takeaways

• RoHS rules take out dangerous substances from PCBs. This makes companies use safer things like lead-free solder and special laminates. These changes help keep people and the environment safe.

• Manufacturers need to change how they work to use new materials. They must handle higher soldering temperatures. They also need to test products carefully, check suppliers, and keep good records to make sure of quality.

• Following RoHS lets companies sell products in more countries. It also makes products safer and helps the environment. There are some extra costs and technical problems, but it is still helpful.

RoHS Overview

RoHS Regulations

RoHS rules are very strict for electronics. They stop dangerous substances from being used in making electrical things, including every pcb. The RoHS directive started in the European Union. It limits things like lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, and polybrominated diphenyl ethers. Each of these has a set amount allowed in any part of a pcb. For example, lead and mercury cannot be more than 0.1% by weight. Cadmium is only allowed up to 0.01%. These rules cover all parts of a pcb, like solder and plating.

RoHS rules also make companies keep records and use CE marking. They must tell if they break the rules. The directive affects metal finishes, plating, and all materials in pcb making. Sometimes, there are exceptions if a rule cannot be followed. RoHS works with other rules like REACH and WEEE. These rules help keep people and the environment safe.

Why RoHS Matters for PCBs

RoHS rules are important for making pcbs. Dangerous substances in pcbs can hurt people and nature. These chemicals can cause health problems like cancer or nerve damage. Children, workers, and people near waste sites are at higher risk. RoHS helps by lowering the amount of toxic substances in every pcb.

Note: RoHS rules protect users and push companies to pick safer materials and better ways to make things.

The RoHS directive makes companies use lead-free solder and safer laminates. These changes make pcbs safer and last longer. RoHS also helps companies sell products in more countries. Many places now need RoHS compliance. By following RoHS, companies show they care about safety, quality, and the environment.

RoHS Impact on PCB Materials

RoHS rules have changed how companies pick materials for every pcb. The main goal is to take out dangerous substances and use safer ones. This change affects the materials, how things are made, and how well the final product works.

Lead-Free Solder

One big change is switching from tin-lead solder to lead-free solder. RoHS pcb rules do not allow lead in soldering materials. Companies now use lead-free solder alloys like tin-silver-copper (SAC305) to follow rohs rules. These new alloys melt at higher temperatures. So, lead-free soldering needs new machines and different ways to work.

The world market for lead-free solder is growing fast. In 2023, it was about $5.5 billion. By 2028, it may reach $7.5 billion. This shows how rohs and other rules help people use safer materials. Lead-free solder is harder and not as bendy as leaded solder. It can break more easily. So, companies must watch the soldering process closely to stop cracks and keep things working well.

Note: Lead-free soldering can cause more tiny cracks and needs better control, but if done right, it can be just as reliable as old solder.

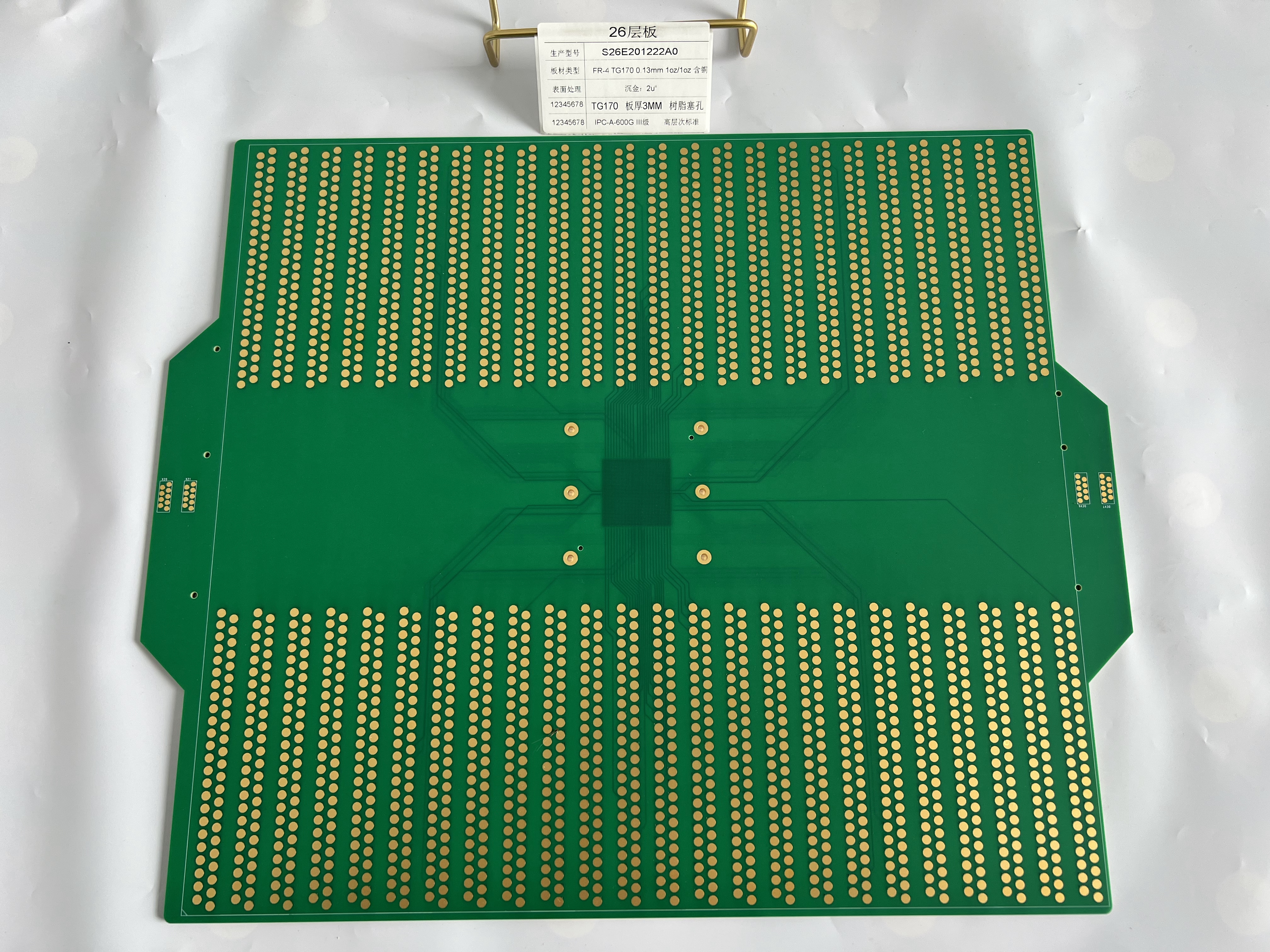

Substrate and Laminate Changes

RoHS pcb rules also changed what is used for substrates and laminates. Lead-free soldering needs higher heat, so regular FR4 may not always work. Now, companies use high Tg epoxies, BT epoxy, and polyimide substrates. These materials handle heat, water, and chemicals better than old ones.

• BT Epoxy: It is strong with heat and force, so it is good for lead-free soldering.

• High Tg Epoxy: It stands up to heat and chemicals, which helps with rohs pcb assembly.

• Polyimide: Used for special jobs, it works in tough places and flexible designs.

• FR-4: Still the most used, but now often made to be lead-free for rohs impact.

These new materials help stop damage during soldering and make pcbs last longer. But, high Tg materials can break more easily, which can cause cracks or let water in when handled or fixed. Companies must think about these things to keep quality high.

Restricted Substances

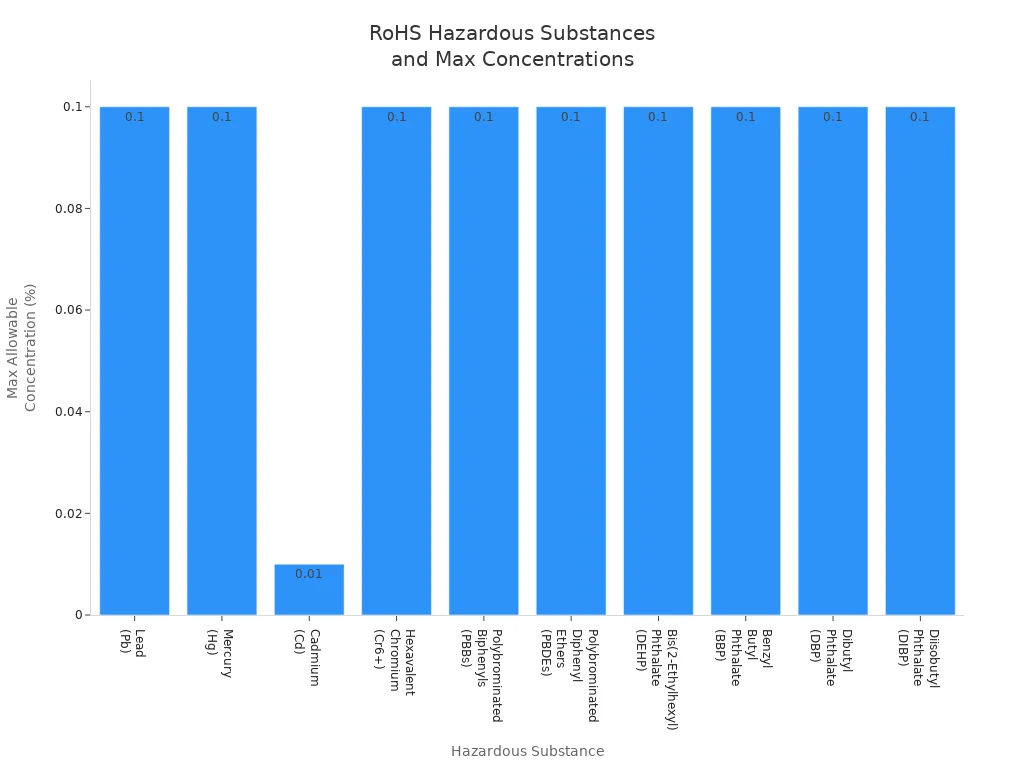

RoHS stops many dangerous substances from being used in pcb materials. The most common ones are lead, mercury, cadmium, hexavalent chromium, PBBs, and PBDEs. RoHS pcb rules also limit some phthalates. To follow the rules, companies use other options like:

• Lead-free solder alloys (tin-copper, tin-silver-copper)

• Lead-free FR4 laminates (IS410, R370HR, IsolaFR415)

• Lead-free surface finishes (immersion silver, ENIG, OSP)

• Flame blockers with phosphorus instead of bromine

These choices lower the risks to people and nature from dangerous substances. Companies must pick parts and materials carefully to make sure every pcb follows rohs rules. The rohs impact covers everything from solder paste to surface finishes.

Tip: Working closely with suppliers and keeping good records helps make sure all materials in a rohs pcb follow the rules.

The rohs impact on pcb materials has led to new ideas and better products. By taking out dangerous substances and using safer, stronger materials, companies make pcbs that are safer for people and the planet.

Design & Manufacturing Changes

Higher Soldering Temperatures

RoHS pcb rules made companies stop using tin-lead solder. Now, they use lead-free alloys that melt at higher heat, usually above 217°C. This extra heat puts more stress on pcb assemblies. When soldering is hotter, brittle compounds can form in the joints. These compounds can make the joints weaker and cause cracks later. Engineers must pick parts and boards that can handle this heat. These changes affect every step of making a pcb.

Process Adjustments

Manufacturers changed many things to follow RoHS:

• Lead-free solder melts at different temperatures, so ovens need new settings.

• High Tg materials are picked because they can take more heat.

• Reflow profiles are changed to help with the way lead-free solder spreads.

• Leaded and lead-free lines are kept apart to stop mixing.

• Inventory is watched closely to track RoHS materials.

• Workers are trained on new ways to make and check pcbs.

• Companies work with suppliers to make sure all parts follow RoHS.

Quality and Reliability

RoHS pcb rules also change how long pcbs last and how well they work. Lead-free solder joints are stronger but break easier. They can get tiny cracks or wear out from heat and cold. Some problems, like filament growth and tin whiskers, can happen more with lead-free solder. But RoHS means safer materials and better records. Certified pcbs often last longer when tested. Companies that follow RoHS help keep people and nature safe.

Tip: Testing often and careful work can stop problems and make every pcb work better.

RoHS Compliance Challenges

Cost and Supply Chain

PCB makers have a hard time with costs and supply chains when following rohs rules. Using eco-friendly materials like lead-free solder and special laminates makes things cost more. For example, SAC solder is 20–30% more expensive than old tin-lead solder. Changing machines for rohs 3 can cost between $50,000 and $100,000.

Supply chains get harder with these rules. Makers must work with suppliers to check every part for rohs compliance. If one part does not follow the rules, the whole PCB fails. Companies also need to keep good records and certificates for each material. Many now use just-in-time inventory and clear cost plans to meet rules and save money.

Note: Closed-loop recycling and water-based cleaning help cut waste and save energy, but they need money and careful planning first.

Big supply chain problems are:

• Handling many suppliers

• Making sure material lists are right

• Keeping things clear and working together

• Doing regular checks and tests

Technical Hurdles

Technical problems come up as makers follow rohs rules. Lead-free solder needs hotter soldering, which can hurt parts and cause the PCB to come apart. Engineers must pick materials that can take high heat, like laminates with glass transition temperatures over 170°C.

Makers also have to swap out banned substances, like some flame blockers, for safer ones. This means picking new materials and changing how things are made. Every part must be checked for rohs 3, because one bad part can mean expensive recalls.

Other technical problems are:

• Changing plating and finishing to use rohs-safe coatings

• Setting up new ways to put parts together for higher melting points

• Making strong rules and keeping good records inside the company

• Teaching workers the new steps

RoHS rules make things harder, but they help make better, safer, and greener PCBs.

Benefits of RoHS-Compliant PCBs

Environmental Protection

RoHS-compliant pcbs help the environment by removing harmful substances from how they are made. Companies now use lead-free and halogen-free materials. These materials make pcbs safer and create less toxic waste. This helps stop metal poisoning and lowers the dangers from electronic trash. RoHS-compliant pcbs also use recyclable things like copper and aluminum. This means we do not need to use as many new resources. Many companies use eco-friendly coatings and water-based inks. These choices help the planet even more. Green ways of making pcbs, like selective soldering and green chemistry, save natural resources and support sustainability.

RoHS-compliant pcbs make electronics cleaner by cutting pollution and helping keep the environment safe.

Health and Safety

Using fewer dangerous substances in pcbs has made things safer for workers and users. Workers now wear special safety gear and have better air systems in factories. Companies use safe ways to get rid of waste, like burning it at high heat or putting it in safe landfills. Rules make sure workers get training, health checks, and are watched for safety. More people now know about these dangers, and schools and jobs test for them. These actions help stop health problems and make workplaces safer.

Market Access

RoHS compliance lets companies sell pcbs in big places like the EU, UK, China, and California. Makers who follow RoHS can sell their products all over the world. If they do not follow the rules, they can get fines or lose their good name. People and businesses want products that are better for the environment. Companies that follow RoHS show they care about green practices and can do better than others. As more countries make these rules, more people want RoHS-compliant pcbs, so companies can sell to more markets.

RoHS Compliance Steps

To follow RoHS rules in making PCBs, companies need a clear plan. They must use good steps for rohs-compliant pcb making. This helps them meet world rules and avoid big mistakes. The steps below show how to get and keep RoHS compliance during production.

Material Selection

Picking the right materials is the first step for RoHS. Makers must choose substrates, finishes, and parts that fit strict limits. Certified RoHS materials, like high-Tg FR-4 laminates and lead-free solder masks, lower the risk of breaking rules. Trusted suppliers such as Isola and Nanya give materials that can take high heat and many soldering cycles. This is important for new pcb designs.

The table below shows the best ways to pick materials for rohs-compliant pcb making:

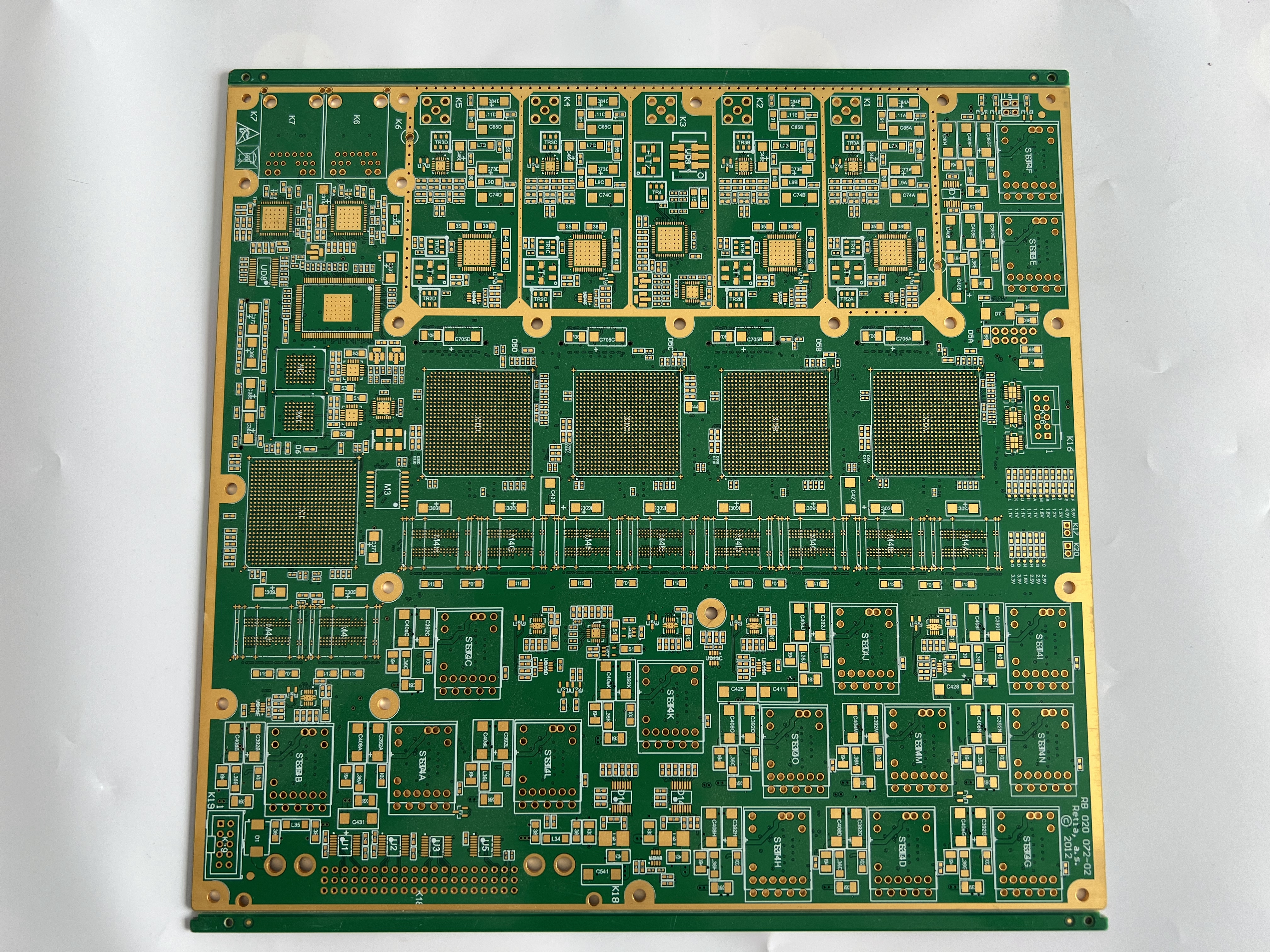

Surface finishes are very important for RoHS. Immersion silver, immersion tin, OSP, ENIG, and lead-free HASL all help meet RoHS rules. Each finish has its own good points, like lasting longer or being better for the earth.

Tip: Always check that every material, from solder paste to surface finish, fits RoHS limits before you start making PCBs.

Supplier Verification

Makers count on suppliers to give them RoHS-safe materials and parts. Top companies use a clear way to check if suppliers follow the rules:

1. Get RoHS certificates or EC Declarations of Conformity from suppliers.

2. Look at datasheets for clear RoHS statements. If RoHS is not listed, do not use that part.

3. Use supplier papers as proof, instead of testing every part by themselves.

4. Make sure all materials, not just solder, fit RoHS rules.

5. Share the blame if a supplier gives false info, so there is a way to fix problems.

6. Use these papers to help with certifications like the EU CE mark.

This way helps companies build a strong supply chain and lowers the chance of breaking rules. Talking often with suppliers and keeping good papers makes things clear.

Note: Checking suppliers is not just done once. Companies should check suppliers often and update their records when needed.

Testing and Documentation

Testing and keeping good records are key for RoHS. Makers must track every material and part used in making PCBs. They use serial numbers, barcodes, or RFID tags to keep track. Test reports show how they check for RoHS and other rules.

Good record-keeping includes:

• Getting Certificates of Compliance (CoCs) from trusted labs and saving them in one place.

• Making a full Technical Construction File (TCF) with design papers, declarations, risk checks, and test reports.

• Keeping records for as long as needed using strong systems.

• Using tools to track changes in design or making steps.

• Writing down what happens if something fails in the field.

• Doing regular checks inside the company with lists and reports.

Makers also get material papers from suppliers, keep lab test reports, and put RoHS marks on PCBs and finished products. Chain of custody papers track materials as they move through the supply chain. Industry standards like IPC-1752 and UL 1007 help with testing and getting certified.

Regular testing and good tracking help companies fix problems fast and sell products around the world.

By doing these steps, makers can keep RoHS compliance, lower risks, and build trust with buyers and rule-makers.

RoHS changed how PCBs are made by making companies use safer materials and greener ways to build things. This has led to new ideas and better ways to make PCBs. Companies sometimes have problems with these changes, but they also get good things like better health, being able to sell in more places, and helping the environment. Learning from industry news and using green methods helps companies keep following the rules and makes the world cleaner and safer for everyone.

FAQ

What does RoHS stand for?

RoHS means "Restriction of Hazardous Substances." This rule limits some dangerous materials in electronics, like PCBs.

How can a company prove RoHS compliance for PCBs?

Companies save certificates from suppliers and test reports. They also keep careful records. These papers help prove they follow the rules during checks.

Are RoHS-compliant PCBs more expensive?

RoHS-compliant PCBs can cost more at first. But they usually help companies save money later.
